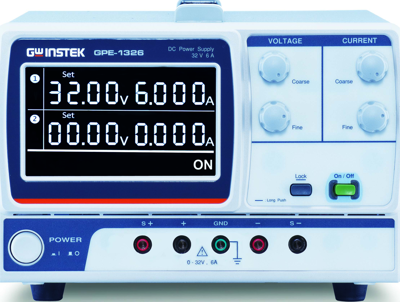

GPE-1326 | GW Instek

Laboratory power supply, 0 bis 32 V, outputs: 1 (6 A), 0 to 6 A, 192 W, GPE-1326

Order No.: 24K7805
EAN: 4719692509260
MPN:
GPE-1326
01GP132610GS
Series: GPE
GPE-1326 GW Instek Bench Power Supplies and Loads
Image may differ
Unit Price (€ / pc.)
379.61 € *
Available in 10 days: 6 pcs. - if ordered today
Total Price:
379.61 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
379.61 €

Single Output Linear, GPE-1326, GW Instek

The GPE-1326 high-resolution power supply to the global market. As a front-runner in the power supply manufacturing industry, GW Instek adheres to the policy of highest production quality so as to ensure the qualitative edge over the competitor. The GPE-1326 features output power from 192 to 217 watt, one independent isolated output channel, high resolution, low noise, high reliability, key lock function, and compact size. The GPE-1326 has firmly established another new paradigm for GW Instek in manufacturing economy linear D.C. power supply.

The GPE-1326 has a built-in digital panel control design to replace conventional control method. This unique design allows the GPE-1326 linear DC power supply to provide user with more efficient functionality, including set view and key lock so as to expedite the operation process. The key lock function protects DUT by preventing other from changing voltage / current parameter. Additionally, output key light facilitates user in clearly reading the operational status of power supply.

Features

  • 1 Independent Isolated Output
  • Output ON/OFF
  • Analog Control (Remote I/O) for Output ON / OFF
  • Key Lock Function
  • Smart cooling fan achieving low noise
Technical specifications
Filter Property Value
Width 210 mm
Power 192 W
Number of outputs 1
Output current 6 A
Output voltage DC 0 to 32 V
Depth 306 mm
Range of Output Currence 0 to 6 A
Height 155 mm
Logistics
Property Value
Country of origin CN
Customs tariff number 85044085
Compliance
Property Value
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
