3570 1331 121 | Günther

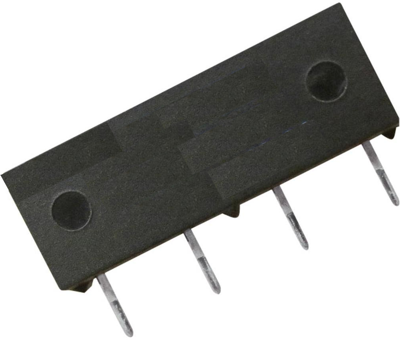

Reed relay, 12 V (DC), 1 Form A (N/O), SIP, 10 W, 3570 1331 121
Unit Price (€ / pc.)
3.0583 € *
Available: 486 pcs.
Total Price:
3.06 € *
Price list
Quantity
Price per unit*
1 pcs.
3.0583 €
25 pcs.
2.5942 €
100 pcs.
2.4038 €
250 pcs.
2.2729 €
1000 pcs.
2.0825 €
*incl. VAT plus shipping costs
Subject to prior sale
Reed relays, Günther 3570 1331.
For PCB connection

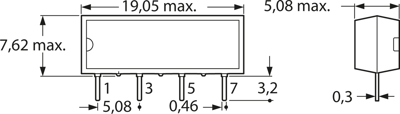

Grid: 2.54 mm (SiL)
Contact type: 1 x NO
Rated/response/release/operating voltage max.: 5.0/3.8/0.8/15 VDC, 12/9.0/1.5/30 VDC, 24/18/2.0/40 VDC
Dielectric strength coil/contact: 1000 VDC
Switching voltage: max. 100 V AC/DC
Switching current: max. 0.5 A
Limiting value of mean on-state current: max. 1.0 A
Breaking capacity: max. 10 W/10 VA
Contact resistance: max. 150 mohm
Dielectric strength: min. 200 VDC
Operating temperatures: - 35 to +80 °C.
Without suppressor diode.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Switching Voltage (AC) | 100 V | |
| Coil voltage (DC) | 12 V | |
| Grid | 2.54 mm | |
| Coil resistance | 1 kΩ | |
| switching current | 500 mA | |
| Contact type | 1 Form A (N/O) | |
| Breaking capacity | 10 W | |
| Connection | PCB connection | |
| Switching Voltage (DC) | 150 V | |
| Design | SIP |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TW |
| Customs tariff number | 85364110 |
| Original Packaging | Bar with 25 pieces |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
