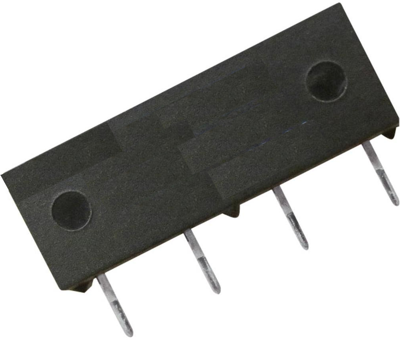

3570 1331 053 | Günther
Reed relay, 10 V·A, NO, 0.5 A
Images may differ
Unit Price (€ / pc.)
2.8798 € *
Available: 548 pcs.
Next delivery: 1,275 pcs. on 2023-12-20
Leadtime: 26 Weeks **
Total Price:
2.88 € *
Quantity
Price per unit*
1 pcs.
2.8798 €
25 pcs.
2.4514 €
100 pcs.
2.2610 €
250 pcs.
2.1539 €
1000 pcs.
1.9635 €
*incl. VAT plus shipping costs
**Subject to prior sale
Description
Reed relays, Günther 3570 1331.
For PCB connection
Grid: 2.54 mm (SiL)
Contact type: 1 x NO
Rated/response/release/operating voltage max.: 5.0/3.8/0.8/15 VDC, 12/9.0/1.5/30 VDC, 24/18/2.0/40 VDC
Dielectric strength coil/contact: 1000 VDC
Switching voltage: max. 100 V AC/DC
Switching current: max. 0.5 A
Limiting value of mean on-state current: max. 1.0 A
Breaking capacity: max. 10 W/10 VA
Contact resistance: max. 150 mohm
Dielectric strength: min. 200 VDC
Operating temperatures: - 35 to +80 °C.
With suppressor diode.
Technical specifications
| Connection | PCB connection | |
| Design | SIP | |
| Contact type | 1 Form A (N/O) | |
| Grid | 2.54 mm | |
| Breaking capacity | 10 W | |
| Switching Voltage (AC) | 100 V | |
| Switching Voltage (DC) | 150 V | |
| switching current | 500 mA | |
| Coil voltage (DC) | 5 V | |
| Coil resistance | 500 Ω |
Download
Logistics
| Country of origin | TW |
| Customs tariff number | 85364110 |
| Original Packaging | Bar with 25 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
Variations
Search results: 1 item in 5 variations
*incl. VAT plus shipping costs
Order No.:
30G548
Manufacturer:
Günther
Manufacturer SKU:
3570 1331 053
Total Price: 2.88 € *
1 pcs.
2.8798 €
25 pcs.
2.4514 €
100 pcs.
2.2610 €
250 pcs.
2.1539 €
1000 pcs.
1.9635 €
Available: 548 pcs.
Next delivery: 1,275 pcs. on 2023-12-20
Leadtime: 26 Weeks **
5 V
500 Ω
SIP
1 Form A (N/O)
10 W
100 V
2.54 mm
500 mA
PCB connection
150 V
Order No.:
30G550
Manufacturer:
Günther
Manufacturer SKU:
3570 1331 123
Total Price: 2.87 € *
1 pcs.
2.8679 €
25 pcs.
2.4395 €
100 pcs.
2.2491 €
250 pcs.
2.1420 €
1000 pcs.
1.9516 €
Available: 54 pcs.
Next delivery: 100 pcs. on 2023-12-27
Leadtime: 26 Weeks **
12 V
1 kΩ
SIP
1 Form A (N/O)
10 W
100 V
2.54 mm
500 mA
PCB connection
150 V
Order No.:
30G542
Manufacturer:
Günther
Manufacturer SKU:
3570 1331 121
Total Price: 3.02 € *
1 pcs.
3.0226 €
25 pcs.
2.5704 €
100 pcs.
2.3800 €
250 pcs.
2.2491 €
1000 pcs.
2.0587 €
Available: 1 pcs.
Leadtime: 35 Weeks **
12 V
1 kΩ
SIP
1 Form A (N/O)
10 W
100 V
2.54 mm
500 mA
PCB connection
150 V
Order No.:
30G540
Manufacturer:
Günther
Manufacturer SKU:
3570 1331 051
Total Price: 3.08 € *
1 pcs.
3.0821 €
25 pcs.
2.7132 €
100 pcs.
2.5585 €
250 pcs.
2.4752 €
1000 pcs.
2.3205 €
Available: 271 pcs.
Leadtime: 35 Weeks **
5 V
500 Ω
SIP
1 Form A (N/O)
10 W
100 V
2.54 mm
500 mA
PCB connection
150 V
Order No.:
30G546
Manufacturer:
Günther
Manufacturer SKU:
3570 1331 241
Total Price: 2.92 € *
1 pcs.
2.9155 €
25 pcs.
2.4752 €
100 pcs.
2.2967 €
250 pcs.
2.1777 €
1000 pcs.
1.9873 €
Available: 498 pcs.
Leadtime: 35 Weeks **
24 V
2 kΩ
SIP
1 Form A (N/O)
10 W
100 V
2.54 mm
500 mA
PCB connection
150 V
