C-00797-01-3 | GTK Electronics
Coaxial Cable, BNC plug (straight) to BNC plug (angled), 50 Ω, RG-58C/U, grommet black, 1 m
Active
Product by GTK Electronics at Bürklin Elektronik
Coaxial cable, C-00797-01-3, GTK Electronics

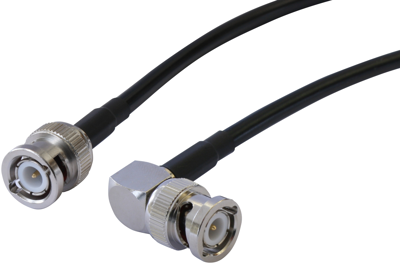

Coaxial connecting cable, one side with straight BNC plug, other side with angled BNC plug. Cable type RG 58 C/U, black, 1 m long.
The BNC series is identified by its 2-pronged bayonet coupling, and is one of the more popular coaxial connectors as it is suitable for a wide range of applications.
Features
- 4 GHz maximum frequency for 50 Ω impedance
- Bayonet coupling, bayonet version of TNC
| Connection (1) | BNC plug (straight) | |
| Connection (2) | BNC plug (angled) | |
| Cable protection bushing colour | black | |
| Impedance | 50 Ω | |
| Cable type | RG-58C/U | |
| Cable length | 1 m |
| Country of origin | TW |
| Customs tariff number | 85444290 |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
