50941 | Goobay

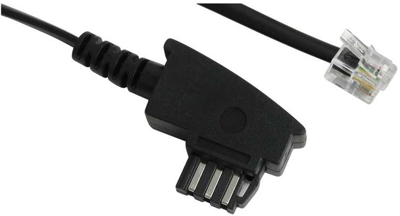

Modular cable, TAE-F plug, angled to RJ11 plug, straight, 3 m, black
Active
Product by Goobay at Bürklin Elektronik
TAE patch cables, 4-pole, type 142../10-NT.
F or N coded, for telecommunication devices; Color: black.
F coded with pin assignment to international standard, type 142.
TAE male connector F (TAES 6/4 F) to Western plug RJ11 (6P/4C); Pin assignment (TAE/modular): 1/3, 2/4, 3/5, 4/2.
Technical attributes (type, length): 142062, 3.0 m length
| Connection (1) | TAE-F plug, angled | |
| Connection (2) | RJ11 plug, straight | |
| Version | Modular cable | |
| AWG cross-section | AWG 28 | |
| Colour | black | |
| Halogen free | No | |
| Cable length | 3 m | |
| Pin configuration | 1:3, 2:4, 3:5, 4:2 | |
| Detent lever protection available | No |
| Country of origin | CN |
| Customs tariff number | 85444290 |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
