COR5 15K J | Futaba

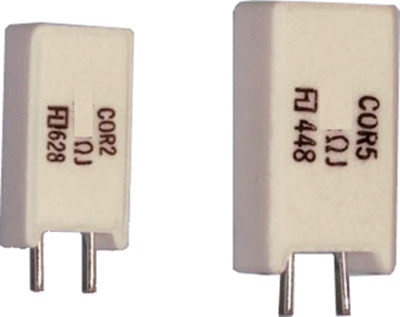

Metal oxide film resistor, 15 kΩ, 5 W, ±5 %, COR5 15K J
Unit Price (€ / pc.)
4.3435 € *
Available: 585 pcs.
Leadtime: 27 Weeks **
Total Price:
4.34 € *
Price list
Quantity
Price per unit*
1 pcs.
4.3435 €
10 pcs.
2.7132 €
50 pcs.
2.3919 €
250 pcs.
2.0706 €
1000 pcs.
1.8088 €
*incl. VAT plus shipping costs
**Subject to prior sale
Wire-wound or metal oxide resistors, tolerance 5.0 %, type Futaba CWR/COR.
Compact design for PCB mounting and with high-temperature resistant quartz ceramic body
Metal oxide resistors, rated load 5.0 W, type COR-5.
Technical specifications
| Temperature coefficient | ±350 ppm/K | |
| Assembly | THT | |
| Width | 9 mm | |
| Height | 25.5 mm | |
| Power | 5 W | |
| Length | 13 mm | |
| Version | metal oxide resistor | |
| Design | radial | |
| min. operating temperature | -40 °C | |
| Tolerance | ±5 % | |
| max. operating temperature | 200 °C | |
| ohmic resistance | 15 kΩ |
Download
Logistics
| Country of origin | JP |
| Customs tariff number | 85332100 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
