GMA47304050080 | FTcap

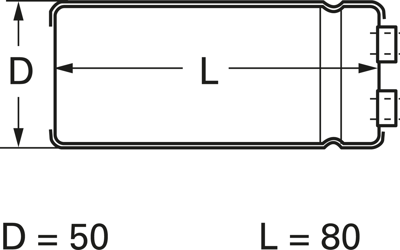

Electrolytic capacitor, 47000 µF, 40 V (DC), -10/+30 %, can, Ø 50 mm

Order No.: 16D766
EAN: 4099879873385
MPN:
GMA47304050080
1012804
Series: GMA
FTcap
default L
front L
Image may differ
Unit Price (€ / pc.)
24.4307 € *
Available: 77 pcs.
Leadtime: 12 Weeks **
Total Price:
24.43 € *
Price list
Quantity
Price per unit*
1 pcs.
24.4307 €
5 pcs.
22.9670 €
15 pcs.
22.0864 €
50 pcs.
21.1225 €
150 pcs.
20.2300 €
*incl. VAT plus shipping costs
**Subject to prior sale

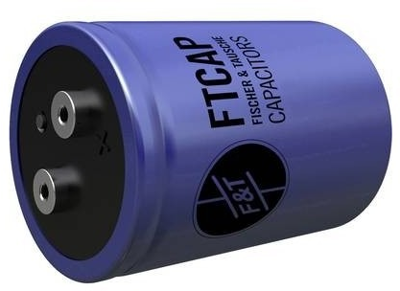

Electrolytic capacitor in aluminum can, type FTCAP GMA.

Rated voltage 40 VDC.

Technical specifications
Connection thread
Version polar
Design can
diameter 50 mm
ESR (Equivalent Series Resistance) 15 mΩ
Capacity 47000 µF
Length 80 mm
max. operating temperature 85 °C
min. operating temperature -40 °C
Rated voltage (DC) 40 V
Ripple current 7.9 A
Tolerance -10/+30 %
Logistics
Country of origin DE
Customs tariff number 85322200
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
Variations
diameter
Length
Rated voltage (DC)
Capacity
Ripple current
Design
Version
Tolerance
Connection
min. operating temperature
max. operating temperature
1 item in 2 variations
*incl. VAT plus shipping costs
Item description
Total
Price list
diameter
Length
Rated voltage (DC)
Capacity
Ripple current
Design
Version
Tolerance
Connection
min. operating temperature
max. operating temperature
Electrolytic capacitor, 47000 µF, 40 V (DC), -10/+30 %, can, Ø 50 mm
Order No.:
 16D766
Manufacturer:
 FTcap
Manufacturer SKU:
 GMA47304050080
Available: 77 pcs. Leadtime: 12 Weeks **
Total Price: 24.43 € *
1 pcs.
24.4307 €
5 pcs.
22.9670 €
15 pcs.
22.0864 €
50 pcs.
21.1225 €
150 pcs.
20.2300 €
50 mm
80 mm
40 V
47000 µF
7.9 A
can
polar
-10/+30 %
thread
-40 °C
85 °C
Electrolytic capacitor, 3300 µF, 350 V (DC), -10/+30 %, can, Ø 65 mm
Order No.:
 16D792
Manufacturer:
 FTcap
Manufacturer SKU:
 GMA33235065100
Available: 40 pcs. Leadtime: 12 Weeks **
Total Price: 76.79 € *
1 pcs.
76.7907 €
5 pcs.
72.1854 €
15 pcs.
69.4246 €
50 pcs.
66.3425 €
150 pcs.
63.5817 €
65 mm
100 mm
350 V
3300 µF
5.8 A
can
polar
-10/+30 %
thread
-40 °C
85 °C
