GMA33235065100 | FTcap
Electrolytic capacitor, 3300 µF, 350 V (DC), -10/+30 %, can, Ø 65 mm, GMA33235065100
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
74.9224 € *
Available: 2 pcs.
Total Price:
74.92 € *
Price list
Quantity
Price per unit*
1 pcs.
74.9224 €
36 pcs.
70.9478 €
*incl. VAT plus shipping costs
Subject to prior sale

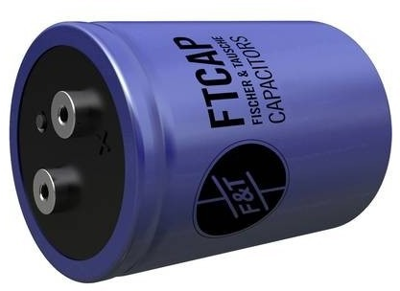

Electrolytic capacitor in aluminum can, type FTCAP GMA.
Rated voltage 350 VDC.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | polar | |
| Capacity | 3300 µF | |
| Rated voltage (DC) | 350 V | |
| Tolerance | -10/+30 % | |
| ESR (Equivalent Series Resistance) | 39 mΩ | |
| Ripple current | 5.8 A | |
| Design | can | |
| Connection | thread | |

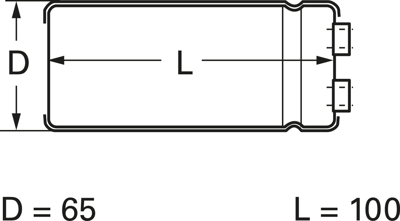

| diameter | 65 mm | |
| Length | 100 mm | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 85 °C |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85322200 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
