Deutsch DE

GMA10340090160 | FTcap

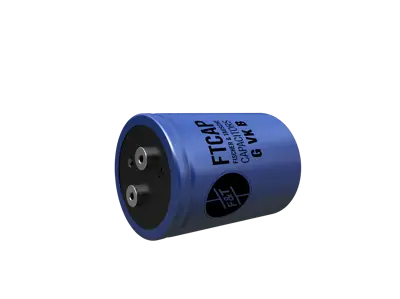

Electrolytic capacitor, 10000 µF, 400 V (DC), -10/+30 %, can, Ø 90 mm

Order No.: 14D3503
EAN: 4099891764753
MPN:
GMA10340090160
1025735
Series: GMA
FTcap
default L
Image may differ
Print
Key Specification:
Version polar
Capacity 10000 µF
Rated voltage (DC) 400 V
Tolerance -10/+30 %
Show 16 variants
Download Datasheet Technical specifications
Unit Price (€ / pc.)
142.1336 € *
Available: 0 pcs.
Leadtime: 9 Weeks **
Add to Cart
Total Price:
142.13 € *
Price list
Quantity
Price per unit*
20 pcs.
142.1336 €
50 pcs.
137.8734 €
100 pcs.
130.7572 €
*incl. VAT plus shipping costs
**Subject to prior sale
Description
Technical specifications
Download
Logistics
Compliance
Variations

Electrolytic capacitor, 1025735, FTcap

The 1025735 electrolytic capacitor features a high capacitance and low inductance ESL, with all internal contacts securely welded.

Features

  • High CV product
  • RoHS compliant
  • REACH compliant

Applications

  • Computer
  • Inverter/drives
  • Traction
  • Welding
Technical specifications
Connection screw connection
Version polar
Design can
diameter 90 mm
Capacity 10000 µF
Length 160 mm
max. operating temperature 85 °C
min. operating temperature -40 °C
Rated voltage (DC) 400 V
Tolerance -10/+30 %
Show similar products 0
Logistics
Country of origin DE
Customs tariff number 85322200
Original Packaging Carton with 20 pieces
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
Variations
diameter
Unit:
Length
Unit:
Tolerance
Rated voltage (DC)
Unit:
Capacity
Unit:
Ripple current
Unit:
Design
Version
Connection
min. operating temperature
max. operating temperature
1 item in 16 variations
*incl. VAT plus shipping costs
Item description
Total
Price list
diameter
Length
Tolerance
Rated voltage (DC)
Capacity
Ripple current
Design
Version
Connection
min. operating temperature
max. operating temperature
Electrolytic capacitor, 15000 µF, 400 V (DC), ±20 %, can, Ø 90 mm
Electrolytic capacitor, 15000 µF, 400 V (DC), ±20 %, can, Ø 90 mm
Order No.:
 14D3543
Manufacturer:
 FTcap
Manufacturer SKU:
 GMA15340090170
Available: 0 pcs. Leadtime: 9 Weeks **
Total Price: 163.27 € *
20 pcs.
163.2680 €
50 pcs.
158.3652 €
100 pcs.
150.2018 €
90 mm
170 mm
±20 %
400 V
15000 µF
15.8 A
can
polar
screw connection
-40 °C
85 °C
Electrolytic capacitor, 22000 µF, 100 V (DC), ±20 %, can, Ø 65 mm
Electrolytic capacitor, 22000 µF, 100 V (DC), ±20 %, can, Ø 65 mm
Order No.:
 14D3313
Manufacturer:
 FTcap
Manufacturer SKU:
 GMA22310065100
Available: 0 pcs. Leadtime: 9 Weeks **
Total Price: 43.70 € *
50 pcs.
43.6968 €
100 pcs.
42.3878 €
300 pcs.
40.1982 €
65 mm
100 mm
±20 %
100 V
22000 µF
14.5 A
can
polar
screw connection
-40 °C
85 °C
Electrolytic capacitor, 2000 µF, 200 V (DC), ±20 %, can, Ø 50 mm
Electrolytic capacitor, 2000 µF, 200 V (DC), ±20 %, can, Ø 50 mm
Order No.:
 14D3253
Manufacturer:
 FTcap
Manufacturer SKU:
 GMA20220050105
Available: 0 pcs. Leadtime: 9 Weeks **
Total Price: 28.08 € *
100 pcs.
28.0840 €
300 pcs.
27.2391 €
500 pcs.
25.8349 €
50 mm
105 mm
±20 %
200 V
2000 µF
can
polar
screw connection
-40 °C
85 °C
Electrolytic capacitor, 4700 µF, 160 V (DC), ±20 %, can, Ø 40 mm
Electrolytic capacitor, 4700 µF, 160 V (DC), ±20 %, can, Ø 40 mm
Order No.:
 14D3123
Manufacturer:
 FTcap
Manufacturer SKU:
 GMA47216040100
Available: 0 pcs. Leadtime: 9 Weeks **
Total Price: 23.51 € *
200 pcs.
23.5144 €
500 pcs.
22.8123 €
1000 pcs.
21.6342 €
40 mm
100 mm
±20 %
160 V
4700 µF
5.4 A
can
polar
screw connection
-40 °C
85 °C
Electrolytic capacitor, 3300 µF, 400 V (DC), ±20 %, can, Ø 75 mm
Electrolytic capacitor, 3300 µF, 400 V (DC), ±20 %, can, Ø 75 mm
Order No.:
 14D3383
Manufacturer:
 FTcap
Manufacturer SKU:
 GMA33240075100
Available: 0 pcs. Leadtime: 9 Weeks **
Total Price: 47.22 € *
50 pcs.
47.2192 €
100 pcs.
45.8031 €
300 pcs.
43.4469 €
75 mm
100 mm
±20 %
400 V
3300 µF
can
polar
screw connection
-40 °C
85 °C
Electrolytic capacitor, 560000 µF, 16 V (DC), ±20 %, can, Ø 65 mm
Electrolytic capacitor, 560000 µF, 16 V (DC), ±20 %, can, Ø 65 mm
Order No.:
 14D3353
Manufacturer:
 FTcap
Manufacturer SKU:
 GMA56401665100
Available: 0 pcs. Leadtime: 9 Weeks **
Total Price: 56.74 € *
50 pcs.
56.7392 €
100 pcs.
55.0375 €
300 pcs.
52.1934 €
65 mm
100 mm
±20 %
16 V
560000 µF
42.1 A
can
polar
screw connection
-40 °C
85 °C
Electrolytic capacitor, 680 µF, 350 V (DC), -10/+30 %, can, Ø 35 mm
Electrolytic capacitor, 680 µF, 350 V (DC), -10/+30 %, can, Ø 35 mm
Order No.:
 14D3043
Manufacturer:
 FTcap
Manufacturer SKU:
 GMA68135035070
Available: 0 pcs. Leadtime: 9 Weeks **
Total Price: 13.71 € *
200 pcs.
13.7088 €
500 pcs.
13.2923 €
1000 pcs.
12.6140 €
35 mm
70 mm
-10/+30 %
350 V
680 µF
can
polar
screw connection
-40 °C
85 °C
Electrolytic capacitor, 10000 µF, 63 V (DC), ±20 %, can, Ø 35 mm
Electrolytic capacitor, 10000 µF, 63 V (DC), ±20 %, can, Ø 35 mm
Order No.:
 14D3053
Manufacturer:
 FTcap
Manufacturer SKU:
 GMA10306335070
Available: 0 pcs. Leadtime: 9 Weeks **
Total Price: 13.71 € *
200 pcs.
13.7088 €
500 pcs.
13.2923 €
1000 pcs.
12.6140 €
35 mm
70 mm
±20 %
63 V
10000 µF
can
polar
screw connection
-40 °C
85 °C
Electrolytic capacitor, 3300 µF, 250 V (DC), ±20 %, can, Ø 50 mm
Electrolytic capacitor, 3300 µF, 250 V (DC), ±20 %, can, Ø 50 mm
Order No.:
 14D3133
Manufacturer:
 FTcap
Manufacturer SKU:
 GMA33225050070
Available: 0 pcs. Leadtime: 9 Weeks **
Total Price: 23.04 € *
100 pcs.
23.0384 €
300 pcs.
22.3482 €
500 pcs.
21.1939 €
50 mm
70 mm
±20 %
250 V
3300 µF
5.2 A
can
polar
screw connection
-40 °C
85 °C
Electrolytic capacitor, 22000 µF, 160 V (DC), ±20 %, can, Ø 75 mm
Electrolytic capacitor, 22000 µF, 160 V (DC), ±20 %, can, Ø 75 mm
Order No.:
 14D3413
Manufacturer:
 FTcap
Manufacturer SKU:
 GMA22316075100
Available: 0 pcs. Leadtime: 9 Weeks **
Total Price: 90.63 € *
50 pcs.
90.6304 €
100 pcs.
87.9172 €
300 pcs.
83.3833 €
75 mm
100 mm
±20 %
160 V
22000 µF
can
polar
screw connection
-40 °C
85 °C
Electrolytic capacitor, 22000 µF, 63 V (DC), ±20 %, can, Ø 50 mm
Electrolytic capacitor, 22000 µF, 63 V (DC), ±20 %, can, Ø 50 mm
Order No.:
 14D3183
Manufacturer:
 FTcap
Manufacturer SKU:
 GMA22306350080
Available: 0 pcs. Leadtime: 9 Weeks **
Total Price: 23.99 € *
100 pcs.
23.9904 €
300 pcs.
23.2764 €
500 pcs.
22.0745 €
50 mm
80 mm
±20 %
63 V
22000 µF
can
polar
screw connection
-40 °C
85 °C
Electrolytic capacitor, 22000 µF, 40 V (DC), ±20 %, can, Ø 40 mm
Electrolytic capacitor, 22000 µF, 40 V (DC), ±20 %, can, Ø 40 mm
Order No.:
 14D3093
Manufacturer:
 FTcap
Manufacturer SKU:
 GMA22304040070
Available: 0 pcs. Leadtime: 9 Weeks **
Total Price: 14.09 € *
200 pcs.
14.0896 €
500 pcs.
13.6612 €
1000 pcs.
12.9591 €
40 mm
70 mm
±20 %
40 V
22000 µF
can
polar
screw connection
-40 °C
85 °C
Electrolytic capacitor, 15000 µF, 63 V (DC), ±20 %, can, Ø 40 mm
Electrolytic capacitor, 15000 µF, 63 V (DC), ±20 %, can, Ø 40 mm
Order No.:
 14D3113
Manufacturer:
 FTcap
Manufacturer SKU:
 GMA15306340070
Available: 0 pcs. Leadtime: 9 Weeks **
Total Price: 14.09 € *
200 pcs.
14.0896 €
500 pcs.
13.6612 €
1000 pcs.
12.9591 €
40 mm
70 mm
±20 %
63 V
15000 µF
can
polar
screw connection
-40 °C
85 °C
*incl. VAT plus shipping costs
**Subject to prior sale
