E-RY3033 | Frolyt

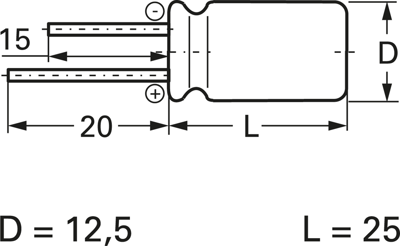

Electrolytic capacitor, 2200 µF, 16 V (DC), ±20 %, radial, pitch 5 mm, Ø 12.5 mm

Frolyt
default L
front L
default S
front S
Images may differ
Order No.:  12D3970
Manufacturer:  Frolyt
Manufacturer SKU:
E-RY3033
E-RY3033 2200/16 12,5X25,0
Manufacturer series:  ERY
EAN: 4099879868374
about the green icons
Total price
( 1.4280 € * / pcs.)
14.28 €
Available: 1,732 pcs.
Leadtime
Quantity
Price per unit*
10 pcs.
1.4280 €
50 pcs.
1.2614 €
250 pcs.
1.0829 €
1000 pcs.
0.9520 €
2500 pcs.
0.8568 €
*incl. VAT plus shipping costs
Show 4 variants
Description
Technical specifications
Logistics
Compliance
Download
Variations
Description

Electrolytic capacitor, insulated aluminum can, type Frolyt ERY.

With particularly low ESR/Z, radial wire ends for vertical mounting, to DIN IEC 60384-1

Rated voltage 16 VDC.
Technical specifications
Version polar
Design radial
diameter 12.5 mm
ESR (Equivalent Series Resistance) 130 mΩ
Capacity 2200 µF
Length 25 mm
max. operating temperature 105 °C
min. operating temperature -55 °C
Rated voltage (DC) 16 V
Grid 5 mm
Tolerance ±20 %
Show similar products (0)
Logistics
Country of origin DE
Customs tariff number 85322200
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
Variations
diameter
Unit
Length
Unit
Grid
Unit
Capacity
Unit
Design
Version
Tolerance
min. operating temperature
Rated voltage (DC)
Unit
max. operating temperature
Search results: 1 item in 4 variations
*incl. VAT plus shipping costs
Item description
Total
Price list
Availability
diameter
Length
Grid
Capacity
Design
Version
Tolerance
min. operating temperature
Rated voltage (DC)
max. operating temperature
Electrolytic capacitor, 1000 µF, 16 V (DC), ±20 %, radial, pitch 5 mm, Ø 10 mm
Electrolytic capacitor, 1000 µF, 16 V (DC), ±20 %, radial, pitch 5 mm, Ø 10 mm
Order No.:
 12D3958
Manufacturer:
 Frolyt
Manufacturer SKU:
 E-RY3032
1.33 € *
1 pcs.
1.3328 €
10 pcs.
1.0829 €
100 pcs.
0.9163 €
250 pcs.
0.7854 €
1000 pcs.
0.6902 €
Available: 316 pcs.
Leadtime
10 mm
21 mm
5 mm
1000 µF
radial
polar
±20 %
-55 °C
16 V
105 °C
Electrolytic capacitor, 2200 µF, 16 V (DC), ±20 %, radial, pitch 5 mm, Ø 12.5 mm
Electrolytic capacitor, 2200 µF, 16 V (DC), ±20 %, radial, pitch 5 mm, Ø 12.5 mm
Order No.:
 12D3970
Manufacturer:
 Frolyt
Manufacturer SKU:
 E-RY3033
14.28 € *
10 pcs.
1.4280 €
50 pcs.
1.2614 €
250 pcs.
1.0829 €
1000 pcs.
0.9520 €
2500 pcs.
0.8568 €
Available: 1,732 pcs.
Leadtime
12.5 mm
25 mm
5 mm
2200 µF
radial
polar
±20 %
-55 °C
16 V
105 °C

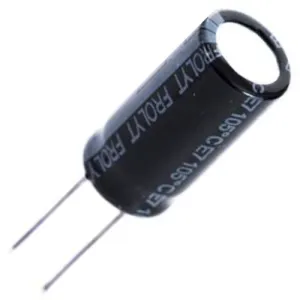

Electrolytic capacitor, 4700 µF, 16 V (DC), ±20 %, radial, pitch 7.5 mm, Ø 16.5 mm
Electrolytic capacitor, 4700 µF, 16 V (DC), ±20 %, radial, pitch 7.5 mm, Ø 16.5 mm
Order No.:
 12D3988
Manufacturer:
 Frolyt
Manufacturer SKU:
 E-RY3035
1.11 € *
1000 pcs.
1.1067 €
Available: 0 pcs.
Leadtime
16.5 mm
30 mm
7.5 mm
4700 µF
radial
polar
±20 %
-55 °C
16 V
105 °C
Electrolytic capacitor, 470 µF, 16 V (DC), ±20 %, radial, pitch 5 mm, Ø 10 mm
Electrolytic capacitor, 470 µF, 16 V (DC), ±20 %, radial, pitch 5 mm, Ø 10 mm
Order No.:
 12D3944
Manufacturer:
 Frolyt
Manufacturer SKU:
 E-RY3031
0.46 € *
3000 pcs.
0.4641 €
Available: 0 pcs.
Leadtime
10 mm
12.7 mm
5 mm
470 µF
radial
polar
±20 %
-55 °C
16 V
105 °C
