E-KSU500 | Frolyt
Bipolar electrolytic capacitor, 220 µF, 50 V (DC), ±20 %, radial, pitch 5 mm, Ø 12.5 mm, E-KSU500
Unit Price (€ / pc.)
2.2848 € *
Available: 606 pcs.
Total Price:
2.28 € *
Price list
Quantity
Price per unit*
1 pcs.
2.2848 €
10 pcs.
1.4280 €
50 pcs.
1.2614 €
250 pcs.
1.0829 €
1000 pcs.
0.9520 €
*incl. VAT plus shipping costs
Subject to prior sale
Bipolar electrolytic capacitor, E-KSU500, Frolyt
Aluminum electrolytic capacitor
Features
- Low-voltage-electrolytic capacitor
- Small dimensions
- Insulated/Non polarized
- Pulse-proof
- Service life 1000...2500 h/+105 °C
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated voltage (DC) | 50 V | |
| Tolerance | ±20 % | |
| Design | radial | |

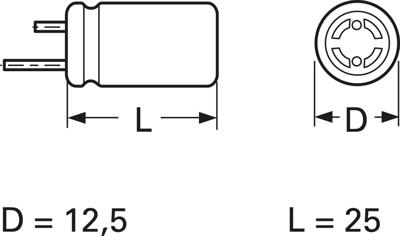

| diameter | 12.5 mm | |
| ESR (Equivalent Series Resistance) | 1.01 Ω | |
| max. operating temperature | 105 °C | |
| min. operating temperature | -40 °C | |
| Version | bipolar | |
| Length | 25 mm | |
| Capacity | 220 µF | |
| Grid | 5 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85322200 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
