E-KSU314 | Frolyt

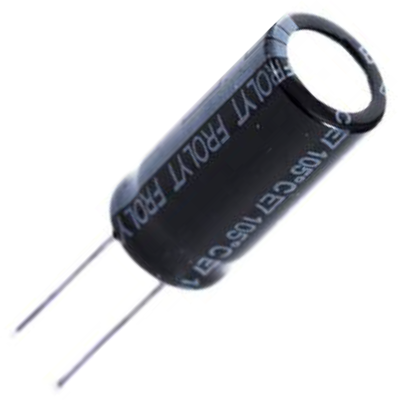

Bipolar electrolytic capacitor, 100 µF, 50 V (DC), ±20 %, radial, pitch 5 mm, Ø 10 mm

Frolyt
default L
front L
default S
front S
Images may differ
Order No.:  12D740
Manufacturer:  Frolyt
Manufacturer SKU:
E-KSU314
E-KSU314 100/50 10,0X21,0
Manufacturer series:  EKSU
EAN: 4099879871985
about the green icons
Total price
( 1.0353 € * / pcs.)
10.35 €
Available: 1,163 pcs.
Leadtime
Quantity
Price per unit*
10 pcs.
1.0353 €
50 pcs.
0.9163 €
250 pcs.
0.7854 €
1000 pcs.
0.6902 €
2500 pcs.
0.6307 €
*incl. VAT plus shipping costs
Show 8 variants
Description
Technical specifications
Logistics
Compliance
Download
Variations
Description

Bipolar electrolytic capacitor, E-KSU314, Frolyt

Aluminum electrolytic capacitor

Features

  • Low-voltage-electrolytic capacitor
  • Small dimensions
  • Insulated/Non polarized
  • Pulse-proof
  • Service life 1000...2500 h/+105 °C
Technical specifications
Version bipolar
Design radial

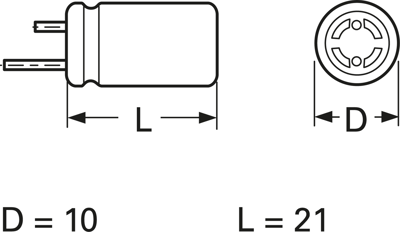

diameter 10 mm
ESR (Equivalent Series Resistance) 2.23 Ω
Capacity 100 µF
Length 21 mm
max. operating temperature 105 °C
min. operating temperature -40 °C
Rated voltage (DC) 50 V
Grid 5 mm
Tolerance ±20 %
Show similar products (0)
Logistics
Country of origin DE
Customs tariff number 85322200
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
Variations
diameter
Unit
Length
Unit
Grid
Unit
Capacity
Unit
max. operating temperature
Design
Version
Tolerance
min. operating temperature
Rated voltage (DC)
Unit
Search results: 1 item in 8 variations
*incl. VAT plus shipping costs
Item description
Total
Price list
Availability
diameter
Length
Grid
Capacity
max. operating temperature
Design
Version
Tolerance
min. operating temperature
Rated voltage (DC)
Bipolar electrolytic capacitor, 22 µF, 50 V (DC), ±20 %, radial, pitch 5 mm, Ø 8.7 mm
Bipolar electrolytic capacitor, 22 µF, 50 V (DC), ±20 %, radial, pitch 5 mm, Ø 8.7 mm
Order No.:
 12D736
Manufacturer:
 Frolyt
Manufacturer SKU:
 E-KSU302
7.50 € *
10 pcs.
0.7497 €
50 pcs.
0.6545 €
Available: 559 pcs.
Leadtime
8.7 mm
12.7 mm
5 mm
22 µF
105 °C
radial
bipolar
±20 %
-40 °C
50 V
Bipolar electrolytic capacitor, 4.7 µF, 50 V (DC), ±20 %, radial, pitch 2.5 mm, Ø 5.5 mm
Bipolar electrolytic capacitor, 4.7 µF, 50 V (DC), ±20 %, radial, pitch 2.5 mm, Ø 5.5 mm
Order No.:
 12D732
Manufacturer:
 Frolyt
Manufacturer SKU:
 E-KSU316
7.62 € *
10 pcs.
0.7616 €
50 pcs.
0.6664 €
Available: 480 pcs.
Leadtime
5.5 mm
12 mm
2.5 mm
4.7 µF
85 °C
radial
bipolar
±20 %
-40 °C
50 V
Bipolar electrolytic capacitor, 47 µF, 50 V (DC), ±20 %, radial, pitch 5 mm, Ø 10 mm
Bipolar electrolytic capacitor, 47 µF, 50 V (DC), ±20 %, radial, pitch 5 mm, Ø 10 mm
Order No.:
 12D738
Manufacturer:
 Frolyt
Manufacturer SKU:
 E-KSU317
6.78 € *
10 pcs.
0.6783 €
50 pcs.
0.5950 €
Available: 792 pcs.
Leadtime
10 mm
12.7 mm
5 mm
47 µF
105 °C
radial
bipolar
±20 %
-40 °C
50 V
Bipolar electrolytic capacitor, 220 µF, 50 V (DC), ±20 %, radial, pitch 5 mm, Ø 12.5 mm
Bipolar electrolytic capacitor, 220 µF, 50 V (DC), ±20 %, radial, pitch 5 mm, Ø 12.5 mm
Order No.:
 12D742
Manufacturer:
 Frolyt
Manufacturer SKU:
 E-KSU500
14.16 € *
10 pcs.
1.4161 €
50 pcs.
1.2495 €
250 pcs.
1.0710 €
1000 pcs.
0.9401 €
2500 pcs.
0.8568 €
Available: 1,530 pcs.
Leadtime
12.5 mm
25 mm
5 mm
220 µF
105 °C
radial
bipolar
±20 %
-40 °C
50 V
Bipolar electrolytic capacitor, 100 µF, 50 V (DC), ±20 %, radial, pitch 5 mm, Ø 10 mm
Bipolar electrolytic capacitor, 100 µF, 50 V (DC), ±20 %, radial, pitch 5 mm, Ø 10 mm
Order No.:
 12D740
Manufacturer:
 Frolyt
Manufacturer SKU:
 E-KSU314
10.35 € *
10 pcs.
1.0353 €
50 pcs.
0.9163 €
250 pcs.
0.7854 €
1000 pcs.
0.6902 €
2500 pcs.
0.6307 €
Available: 1,163 pcs.
Leadtime
10 mm
21 mm
5 mm
100 µF
105 °C
radial
bipolar
±20 %
-40 °C
50 V
Bipolar electrolytic capacitor, 10 µF, 50 V (DC), ±20 %, radial, pitch 2.5 mm, Ø 6.8 mm
Bipolar electrolytic capacitor, 10 µF, 50 V (DC), ±20 %, radial, pitch 2.5 mm, Ø 6.8 mm
Order No.:
 12D734
Manufacturer:
 Frolyt
Manufacturer SKU:
 E-KSU013
5.71 € *
10 pcs.
0.5712 €
50 pcs.
0.4284 €
250 pcs.
0.3332 €
1000 pcs.
0.2904 €
2000 pcs.
0.2559 €
Available: 4,249 pcs.
Leadtime
6.8 mm
12.5 mm
2.5 mm
10 µF
85 °C
radial
bipolar
±20 %
-40 °C
50 V
Bipolar electrolytic capacitor, 2.2 µF, 50 V (DC), ±20 %, radial, pitch 2.5 mm, Ø 5.5 mm
Bipolar electrolytic capacitor, 2.2 µF, 50 V (DC), ±20 %, radial, pitch 2.5 mm, Ø 5.5 mm
Order No.:
 12D730
Manufacturer:
 Frolyt
Manufacturer SKU:
 E-KSU315
7.62 € *
10 pcs.
0.7616 €
50 pcs.
0.6664 €
Available: 2,068 pcs.
Leadtime
5.5 mm
12 mm
2.5 mm
2.2 µF
85 °C
radial
bipolar
±20 %
-40 °C
50 V
Bipolar electrolytic capacitor, 1 µF, 50 V (DC), ±20 %, radial, pitch 2.5 mm, Ø 5.5 mm
Bipolar electrolytic capacitor, 1 µF, 50 V (DC), ±20 %, radial, pitch 2.5 mm, Ø 5.5 mm
Order No.:
 12D728
Manufacturer:
 Frolyt
Manufacturer SKU:
 E-KSU331
0.29 € *
5000 pcs.
0.2904 €
Available: 0 pcs.
Leadtime
5.5 mm
12 mm
2.5 mm
1 µF
85 °C
radial
bipolar
±20 %
-40 °C
50 V
