E-KSU315 | Frolyt

Bipolar electrolytic capacitor, 2.2 µF, 50 V (DC), ±20 %, radial, pitch 2.5 mm, Ø 5.5 mm, E-KSU315

Order No.: 12D730
EAN: 4099879871930
MPN:
E-KSU315
E-KSU315 2,2/50 5,5X12,0
Series: EKSU

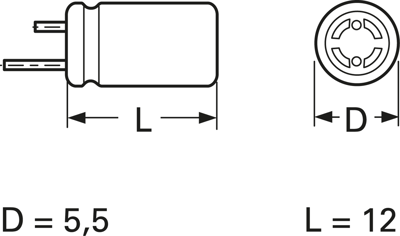

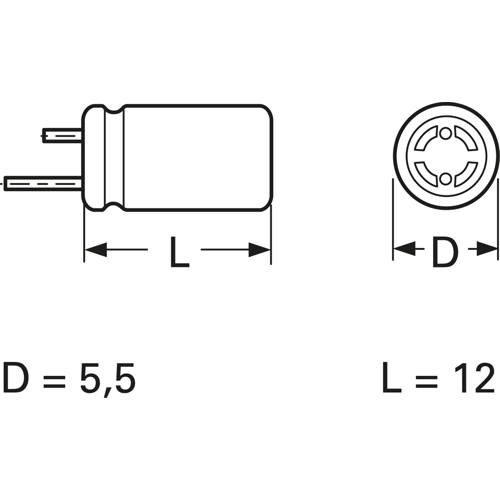

E-KSU315 Frolyt Electrolytic Capacitors Image 1
E-KSU315 Frolyt Electrolytic Capacitors Image 2
Image may differ
Unit Price (€ / pc.)
0.7854 € *
Available: 552 pcs.
Total Price:
0.79 € *
Price list
Quantity
Price per unit*
1 pcs.
0.7854 €
10 pcs.
0.5712 €
100 pcs.
0.4879 €
500 pcs.
0.4165 €
1000 pcs.
0.3808 €
*incl. VAT plus shipping costs
Subject to prior sale

Bipolar electrolytic capacitor, E-KSU315, Frolyt

Aluminum electrolytic capacitor

Features

  • Low-voltage-electrolytic capacitor
  • Small dimensions
  • Insulated/Non polarized
  • Pulse-proof
  • Service life 1000...2500 h/+105 °C
Technical specifications
Filter Property Value
min. operating temperature -40 °C
Grid 2.5 mm
Tolerance ±20 %
Version bipolar
Rated voltage (DC) 50 V
max. operating temperature 85 °C
Capacity 2.2 µF
Length 12 mm
diameter 5.5 mm
ESR (Equivalent Series Resistance) 101.28 Ω
Design radial
Logistics
Property Value
Customs tariff number 85322200
Country of origin DE
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
