E-KSU013 | Frolyt
Bipolar electrolytic capacitor, 10 µF, 50 V (DC), ±20 %, radial, pitch 2.5 mm, Ø 6.8 mm, E-KSU013
Unit Price (€ / pc.)
0.4760 € *
Available: 1,146 pcs.
Total Price:
0.48 € *
Price list
Quantity
Price per unit*
1 pcs.
0.4760 €
10 pcs.
0.3332 €
100 pcs.
0.2856 €
500 pcs.
0.2499 €
1000 pcs.
0.2261 €
*incl. VAT plus shipping costs
Subject to prior sale
Bipolar electrolytic capacitor, E-KSU013, Frolyt
Aluminum electrolytic capacitor
Features
- Low-voltage-electrolytic capacitor
- Small dimensions
- Insulated/Non polarized
- Pulse-proof
- Service life 1000...2500 h/+105 °C
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated voltage (DC) | 50 V | |
| Tolerance | ±20 % | |
| Design | radial | |

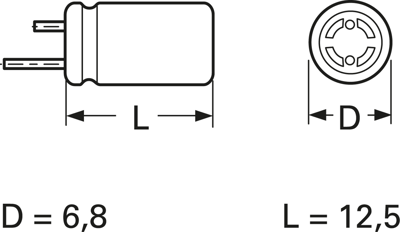

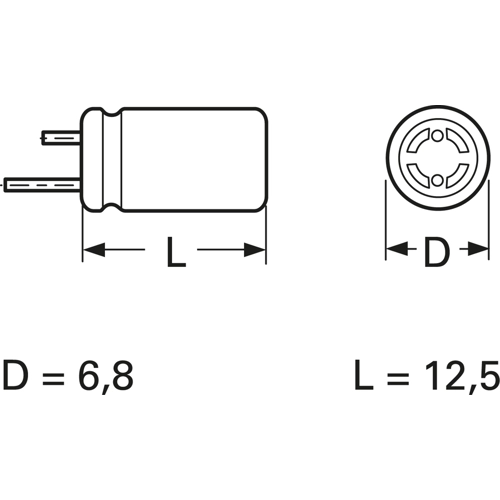

| diameter | 6.8 mm | |
| ESR (Equivalent Series Resistance) | 22.28 Ω | |
| max. operating temperature | 85 °C | |
| min. operating temperature | -40 °C | |
| Version | bipolar | |
| Length | 12.5 mm | |
| Capacity | 10 µF | |
| Grid | 2.5 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85322200 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
