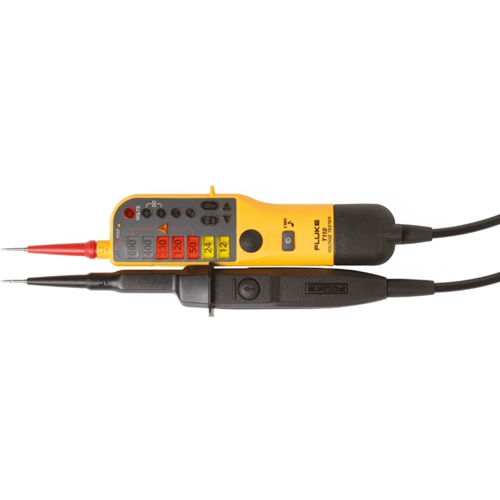

FLUKE T110/VDE | Fluke
Voltage and continuity tester
Voltage and continuity testers, type Fluke T110/VDE.
For measuring voltage and continuity. With phase sequence indicator. Visual and acoustic continuity check. Single pole check for phase detection without reference potential. Polarity indication. Test probe protection; DC and AC voltage: 12 to 690 V. Continuity check: 0 to 400 kohm. Response time: max. 0.5 s. Measurement category: CAT II 690 V, CAT III 600 V. Degree of protection: IP 64. Dimensions: 260 x 70 x 38 mm. Weight: 280 g. Supplied with batteries.
Type: Fluke T110/VDE, voltage and continuity tester
| Display | LED | |
| Version | voltage/continuity tester | |
| Continuity test | 0-400 kΩ | |
| Rated category | CAT III, CAT IV | |
| Degree of protection (IP) | IP64 | |
| max. voltage measuring range (AC) | 690 V | |
| max. voltage measuring range (DC) | 690 V |
| Country of origin | RO |
| Customs tariff number | 90304000 |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
