FLUKE 1507 | Fluke
Insulation tester, with auto discharge, CAT IV 600 V, Fluke FLUKE 1507
NCNR (non cancelable / non returnable)

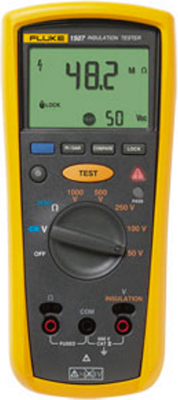

Fluke 1507, insulation resistance tester
ergonomic, rugged, reliable and user-friendly insulation tester. Features: selectable test voltages, auto-discharge of capacitive voltages, live circuit detection, automatic calculation of the polarization index and dielectric degree of absorption, Auto-Off, large backlit display, continuity check (200 mA), PASS/FAIL comparison. Insulation test range 1507: 0.01 Mohm to 10 Gohm. Test voltages: 50 V, 100 V, 250 V, 500 V, 1000 V. Tolerance: +20 %. Test current: 1.0 mA rated. AC/DC voltage: 0.1 to 600 V. Resistance: 0.01 ohm to 20 kohm. Discharge time: < 0.5 s, max. capacitive load: 1.0 µF, short circuit-current: > 200 mA. Dimensions: H 203, W 100, D 50 mm. Weight: 550 g
| Filter | Property | Value |
|---|---|---|
| Product type | insulation tester | |
| Version | with auto discharge | |
| Surge voltage category | CAT IV 600 V | |
| Insulation resistance Min | 0.01 MΩ | |
| Insulation resistance Max | 10 Ω | |
| Max measured value DC voltage | 600 V | |
| Max measured value AC voltage | 600 V | |
| Degree of protection (IP) | IP40 | |
| Batteries | AA |
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 90303100 |
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | not_relevant |
| Date of RoHS guidelines | 3/31/15 |
