I17XX-FLEX1500/18 | Fluke
Current clamp I17XX-FLEX1500/18, 1500 A (AC), opening 457.2 mm, CAT IV 600 V
Unit Price (€ / pc.)
327.25 € *
Standard delivery time from the manufacturer is: 3 Weeks

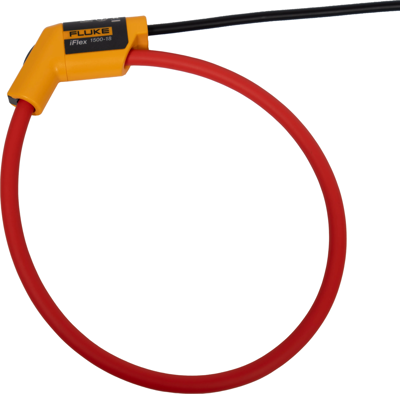

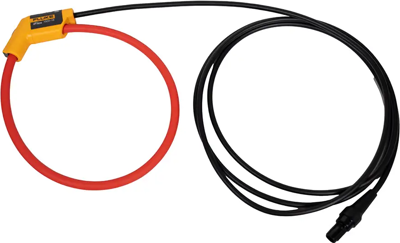

Current Clamp, I17XX-FLEX1500/18, Fluke

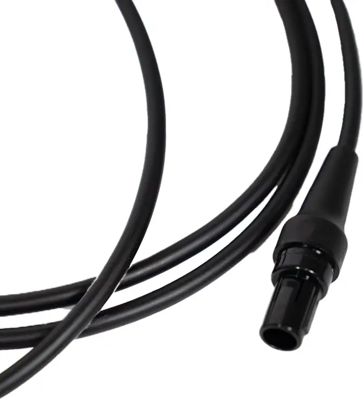

The I17XX-FLEX1500/18 12 inch iFlex flexible current probes measure to 1500A AC while providing the ultimate measurement flexibility. The iFlex probes connect directly to the 173X Energy or Power Logger, displaying current measurements without error prone scaling factors. The 1.8 m (6 ft) cord allows separation between the measurement location and the energy logger making it easier to view the display.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | with sensor length 30 cm | |
| TRMS possible | No | |
| Pliers opening | 457.2 mm | |
| max. measured current value (AC) | 1500 A | |
| Surge voltage category | CAT IV 600 V | |
| Product type | current clamp |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 90309000 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
