1 5020 430 021 | Flexa

Straight hose screw fitting, PG21, 27 mm, PP, IP54, gray, (L) 48 mm, 1 5020 430 021

Order No.: 91F3955
EAN: 4025113178497
MPN:
1 5020 430 021
5020.430.021
Series: USK-P

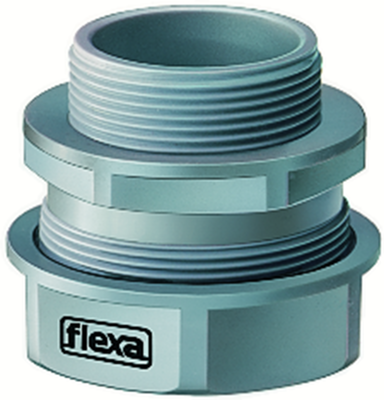

1 5020 430 021 Flexa Hose Fittings Image 1
1 5020 430 021 Flexa Hose Fittings Image 2
Image may differ
Unit Price (€ / pc.)
12.3165 € *
Available: 2 pcs.
Total Price:
12.32 € *
Price list
Quantity
Price per unit*
1 pcs.
12.3165 €
10 pcs.
11.4954 €
50 pcs.
10.6743 €
100 pcs.
10.2697 €
*incl. VAT plus shipping costs
Subject to prior sale

Corresponding plastic fittings series USK-P

with outer thread and faces for hexagonal wrench. Connecting thread: Pg to DIN 40430. Optimal protection against the ingress of dust and liquids. High vibration resistance and tensile strength. Material case and inner bushing: polypropylene (PP). Seal ring: TPE. Degree of protection: IP 65. Operating temperatures: - 10 to +110 °C.

Type: 5020.430.021

Connecting thread: Pg 21

Conduit outer diameter: 27 mm

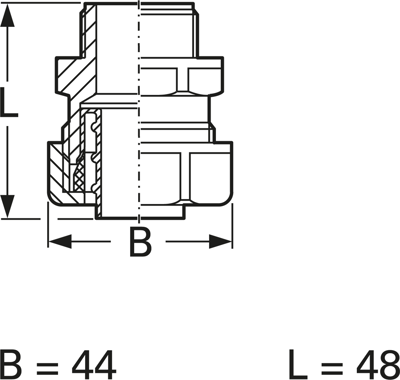

Dimension B: 44 mm

Dimension L: 48 mm

Technical specifications
Thread size PG21
Nominal width 27 mm
Material PP
Colour gray
Length 48 mm
Degree of protection (IP) IP54
min. operating temperature -10 °C
max. operating temperature 110 °C
Logistics
Country of origin DE
Customs tariff number 39174000
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
