1 5020 430 016 | Flexa

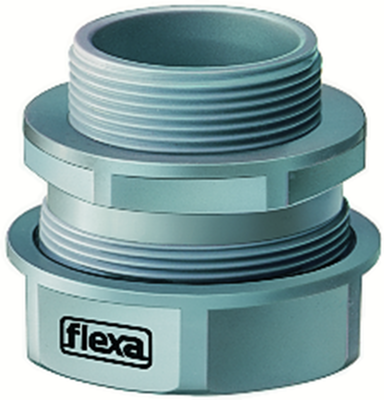

Straight hose fitting, PG16, 21 mm, polypropylene, IP54, gray, (L) 42 mm
Unit Price (€ / pc.)
11.6858 € *
Available: 0 pcs.
Leadtime: 2 Weeks **
Corresponding plastic fittings series USK-P
with outer thread and faces for hexagonal wrench. Connecting thread: Pg to DIN 40430. Optimal protection against the ingress of dust and liquids. High vibration resistance and tensile strength. Material case and inner bushing: polypropylene (PP). Seal ring: TPE. Degree of protection: IP 65. Operating temperatures: - 10 to +110 °C.
Type: 5020.430.016
Connecting thread: Pg 16
Conduit outer diameter: 21 mm

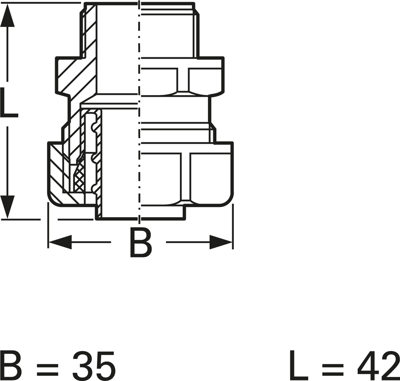

Dimension B: 35 mm
Dimension L: 42 mm
Technical specifications
| Colour | gray | |
| Thread size | PG16 | |
| Length | 42 mm | |
| Material | polypropylene | |
| max. operating temperature | 110 °C | |
| min. operating temperature | -10 °C | |
| Nominal width | 21 mm | |
| Degree of protection (IP) | IP54 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 39174000 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
