1 5020 430 009 | Flexa

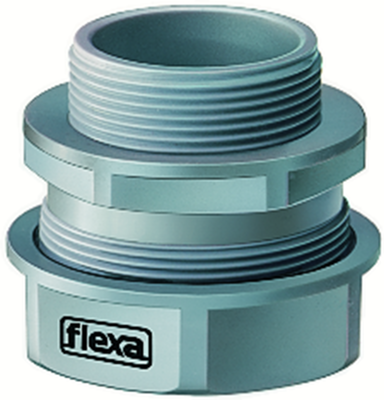

Straight hose screw fitting, PG9, 14 mm, PP, IP54, gray, (L) 41 mm, 1 5020 430 009
Unit Price (€ / pc.)
5.1884 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
5.19 € *
Price list
Quantity
Price per unit*
1 pcs.
5.1884 €
10 pcs.
4.8433 €
50 pcs.
4.4982 €
100 pcs.
4.3316 €
*incl. VAT plus shipping costs
Subject to prior sale
Corresponding plastic fittings series USK-P
with outer thread and faces for hexagonal wrench. Connecting thread: Pg to DIN 40430. Optimal protection against the ingress of dust and liquids. High vibration resistance and tensile strength. Material case and inner bushing: polypropylene (PP). Seal ring: TPE. Degree of protection: IP 65. Operating temperatures: - 10 to +110 °C.
Type: 5020.430.009
Connecting thread: Pg 9
Conduit outer diameter: 14 mm

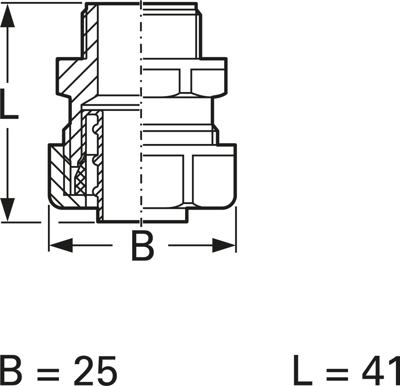

Dimension B: 25 mm
Dimension L: 41 mm
Technical specifications
| Thread size | PG9 | |
| Nominal width | 14 mm | |
| Material | PP | |
| Colour | gray | |
| Length | 41 mm | |
| Degree of protection (IP) | IP54 | |
| min. operating temperature | -10 °C | |
| max. operating temperature | 110 °C |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 39174000 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
