10146977 | Fischer Elektronik
Semiconductor socket, for TO-220, 10146977
Unit Price (€ / pc.)
1.3090 € *
Available: 6 pcs.
Total Price:
6.55 € *
Price list
Quantity
Price per unit*
5 pcs.
1.3090 €
50 pcs.
1.1424 €
250 pcs.
0.9877 €
1000 pcs.
0.8568 €
2500 pcs.
0.7854 €
*incl. VAT plus shipping costs
Subject to prior sale

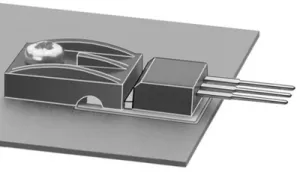

Semiconductor mounting brackets, type Fischer ISP.
Suitable for use as insulating bracket that increases the dielectric strength for the assembly of semiconductors in TO 220 and TO 218 packages. Instead of a screw, a spigot that snaps into the drilled hole is used to mount the semiconductor; Material: glass fiber-reinforced polyamide. Heat distortion temperature: 205 °C (1.8 MPa), 135 °C (8-0 MPa). Dielectric strength: 27 kV/mm. Color: black.
Type: ISP 220 V, semiconductor snap mount for TO 220
Technical specifications
| Length | 17.7 mm | |
| Height | 5.6 mm | |
| Version | semiconductor socket | |
| Suitable for | TO-220 | |
| Width | 12.1 mm | |
| Material | PA/glass fibers |
Download
Logistics
| Customs tariff number | 85469090 |
| Country of origin | DE |
Compliance
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
