Semiconductor socket, 10 pole, brass for TO-5, 10044910
Unit Price (€ / pc.)
8.3062 € *
Available: 30 pcs.
Leadtime: 3 Weeks **
Total Price:
8.31 € *
Price list
Quantity
Price per unit*
1 pcs.
8.3062 €
10 pcs.
7.3185 €
100 pcs.
6.4022 €
250 pcs.
6.1642 €
1000 pcs.
5.7715 €
*incl. VAT plus shipping costs
**Subject to prior sale
Semiconductor sockets, type Fischer PF.
Suitable for TO 5, extra-flat design (3.0 mm), for PCB mounting. Contacts: gold-plated, Insulating body: polysulphone GV. Operating temperatures: - 65 to +180 °C. Diameter: 9.5 mm.

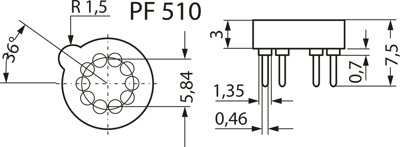

Technical attributes (type, number of poles, maximum contact pitch (by diameter). Contact finish): PF 510 G, 10-pole, 5.84 mm, gold-plated
Technical specifications
| Rated current | 1.5 A | |
| diameter | 9.5 mm | |
| Width | 2.9 mm | |
| Height | 7.4 mm | |
| Length | 7.4 mm | |
| Pin number | 10 pole | |
| Version | semiconductor socket | |
| min. operating temperature | -40 °C | |
| Material | PA/glass fibers | |
| Suitable for | TO-5 | |
| Contact material | brass | |
| max. operating temperature | 163 °C | |
| Rated voltage | 60 V |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369095 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | Yes |
