10031453 | Fischer Elektronik

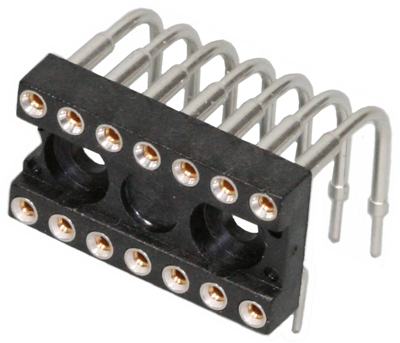

IC socket, 20 pole, pitch 2.54 mm (7.62 mm), brass for DIL-IC
Active
Product by Fischer Elektronik at Bürklin Elektronik
IC sockets, angled, type Fischer DIL..GZ.
Insulating body: PPS GF to UL 94 V-0. Contact sleeve: tinned nickel-plated brass. Inner spring contact: beryllium copper, gold-plated on nickel primer. Rated current: 1.5 A. Rated voltage: 150 VDC. Operating temperatures: –40 to +200 °C. 10-pole socket without mounting holes.

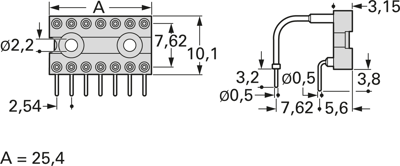

Technical attributes (type, number of poles, dimension A): DIL 20 GZ, 20-pole, A 25.40 mm
| Version | IC socket | |
| Width | 10.1 mm | |
| Suitable for | DIL-IC | |
| Height | 5.5 mm | |
| Contact material | brass | |
| Length | 20.3 mm | |
| Material | Polyphenylene sulfide/Glass fiber | |
| max. operating temperature | 200 °C | |
| min. operating temperature | -40 °C | |
| Rated voltage | 150 V | |
| Rated current | 1.5 A | |
| Pin number | 20 pole | |
| Grid | 2.54 mm |
| Country of origin | DE |
| Customs tariff number | 85369095 |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
