10007423 | Fischer Elektronik

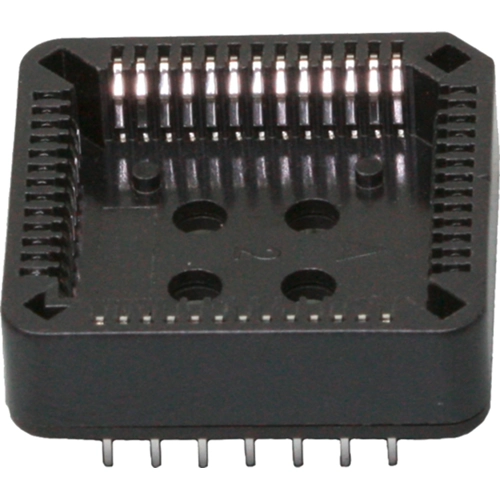

PLCC socket, 44 pole, pitch 2.54 mm, CuSn alloy for PLCC, 10007423
Unit Price (€ / pc.)
3.3915 € *
Available: 85 pcs.
Total Price:
3.39 € *
Price list
Quantity
Price per unit*
1 pcs.
3.3915 €
25 pcs.
2.8798 €
100 pcs.
2.6656 €
250 pcs.
2.5228 €
1000 pcs.
2.3205 €
*incl. VAT plus shipping costs
Subject to prior sale
Chip sockets, type Fischer PLCC.
For PLCCs with package design to standard EiA/JEDEC Type A; Insulating body: PBT GF, UL 94 V-0. Contact material: nickel-plated phosphor bronze, additionally tinned. Rated current: 1.0 A. Rated voltage: 125 VDC. Operating temperatures: –55 to +110 °C. Features: with drainage holes for better internal cleaning, mold with test holes next to each contact spring. Double polarity indication.
Technical attributes (number of poles, length (L), width (W), mounting height (H)): 44-pole, L 23.2, W 23.2, H 8.2 mm
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | Chip socket | |
| Suitable for | PLCC | |
| Pin number | 44 pole | |
| Grid | 2.54 mm | |
| Contact material | CuSn alloy | |
| Material | PPS/glass fibers | |
| Rated current | 1 A | |
| Length | 23.2 mm | |
| Width | 23.2 mm | |
| Height | 8.2 mm | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 105 °C |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TW |
| Original Packaging | Bar with 25 pieces |
| Customs tariff number | 85369095 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
