10007415 | Fischer Elektronik

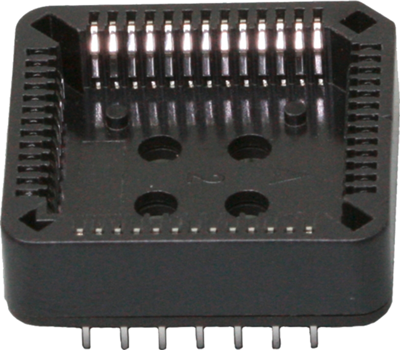

PLCC socket, 20 pole, pitch 2.54 mm, CuSn alloy for PLCC, 10007415
Unit Price (€ / pc.)
2.1896 € *
Standard delivery time from the manufacturer is: On Request
Chip sockets, type Fischer PLCC.
For PLCCs with package design to standard EiA/JEDEC Type A; Insulating body: PBT GF, UL 94 V-0. Contact material: nickel-plated phosphor bronze, additionally tinned. Rated current: 1.0 A. Rated voltage: 125 VDC. Operating temperatures: –55 to +110 °C. Features: with drainage holes for better internal cleaning, mold with test holes next to each contact spring. Double polarity indication.
Technical attributes (number of poles, length (L), width (W), mounting height (H)): 20-pole, L 15.55, W 15.55, H 8.2 mm
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact material | CuSn alloy | |
| Suitable for | PLCC | |
| Grid | 2.54 mm | |
| Width | 15.55 mm | |
| Material | PPS/glass fibers | |
| Rated current | 1 A | |
| Height | 8.2 mm | |
| max. operating temperature | 105 °C | |
| min. operating temperature | -40 °C | |
| Version | Chip socket | |
| Pin number | 20 pole | |
| Length | 15.55 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369095 |
| Country of origin | TW |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
