MK220SMD22BTR | Fischer Elektronik

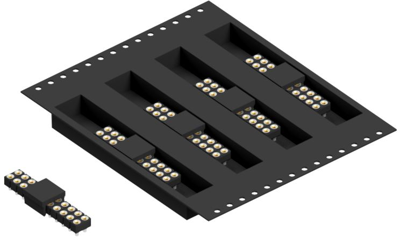

Socket header, 22 pole, pitch 2.54 mm, straight, MK220SMD22BTR
Unit Price (€ / pc.)
3.4629 € *
Standard delivery time from the manufacturer is: 7 Weeks
Socket header, MK 220 SMD 22 B TR, Fischer Elektronik
Socket header for Ø 0.5 mm with no capilliary action when soldering due to protected inner contact.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 2.54 mm | |
| contact surface | tin-plated | |
| Contact type | socket | |
| Connection | solder connection | |
| Connection plating | gold-plated | |
| Rated voltage | 60 V | |
| Orientation | straight | |
| Number of rows | 2 | |
| Pin number | 22 pole | |
| Additional parts | equipped | |
| Version | socket header | |
| Rated current | 1.5 A |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366930 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
