Pin header, 10058995, FISCHER EL

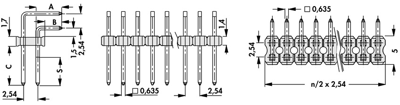

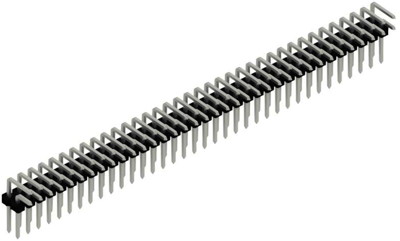

The SL LP 4 069 is a precision-engineered low profile, angled connector designed with a compact 0.635 mm pitch to optimize space in electronic assemblies. Featuring dimensions of 4.5 mm (A) by 3 mm (B) by 6.9 mm (C), this component offers a selective contact height of 5 mm, ensuring reliable mechanical and electrical performance. Its tin-plated contact surface enhances solderability and corrosion resistance, making it suitable for demanding manufacturing environments. The connector’s design supports efficient integration with ECAD systems, facilitating streamlined development workflows. Ideal for applications requiring space-saving, high-density interconnections, the SL LP 4 069 is well-suited for use in industrial electronics and complex circuit board layouts. Its angled configuration allows for flexible routing and improved accessibility in compact assemblies, while the robust tin-plated contacts ensure consistent signal integrity and durability. This component supports reliable performance in environments where precision and quality are critical for system functionality.
