10026872 | Fischer Elektronik

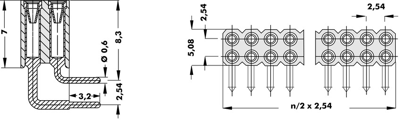

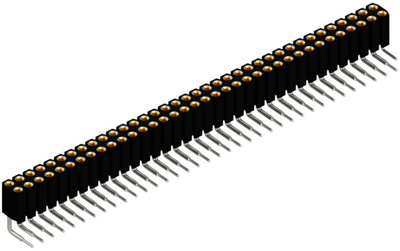

Socket header, 72 pole, pitch 2.54 mm, angled, black, 10026872
Socket header, 10026872, FISCHER EL
The BL 8 is designed to accommodate connectors with a diameter ranging from 0.65 mm to 0.85 mm, ensuring precise fit and reliable connectivity. It supports components with a diameter starting at 0.635 mm up to 0.85 mm and offers an optional bar magazine packing for streamlined handling and efficient assembly processes. The product is engineered to withstand a temperature range of 260°C for 10 seconds, making it suitable for high-temperature soldering applications without compromising performance or durability. This component is ideal for use in electronic manufacturing environments where precise connector dimensions and thermal resistance are critical. Its compatibility with connectors within the specified diameter range and robust temperature tolerance make it suitable for integration into automated assembly lines and devices requiring secure and stable electrical connections under demanding thermal conditions. The BL 8 enhances process reliability and supports efficient production workflows in industrial electronics applications.
| Filter | Property | Value |
|---|---|---|
| Version | socket header | |
| Contact type | socket | |
| Pin number | 72 pole | |
| Grid | 2.54 mm | |
| Connection | PCB connection | |
| Orientation | angled | |
| contact surface | tin-plated | |
| Connection plating | tin-plated | |
| Rated voltage | 100 V | |
| Rated current | 3 A | |
| Additional parts | equipped | |
| Number of rows | 1 | |
| Colour | black |
| Property | Value |
|---|---|
| Original Packaging | Bar with 5 pieces |
| Customs tariff number | 85369095 |
| Country of origin | DE |
| Property | Value |
|---|---|
| Electrical equipment take-back |  |
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
