10025572 | Fischer Elektronik

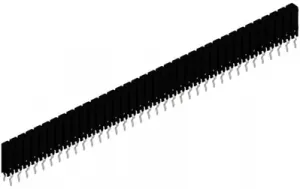

Socket header, 36 pole, pitch 2.54 mm, straight, black, 10025572
Unit Price (€ / pc.)
4.9147 € *
Available: 0 pcs.
Leadtime: 8 Weeks **
Socket headers for PCB mounting, type Fischer BL 11.
2.54 mm grid. Insertion from the top or bottom, splittable, single-row, for 0.6 to 0.65 mm square pins; Rated current: 3.0 A. Rated voltage: 250 VAC. Test voltage: 500 V. Insulation resistance: > 1000 Gohm. Contact resistance: < 20 mohm. Capacitance between adjacent contacts: < 0.9 pF. Insulator: glass fiber-reinforced polyester. Contacts: nickel-plated CuSn alloy, with 0.2 µm selective gold-plating. Insertion/removal forces: 1.5/0.5 N. Operating temperatures: –40 to +105 °C.
Technical attributes (type, number of poles): BL 11/254/ 36/S, 36–pole
Technical specifications
| Connection | PCB connection | |
| Connection plating | tin-plated | |
| Number of rows | 1 | |
| Version | socket header | |
| Additional parts | unequipped | |
| Colour | black | |
| Contact type | socket | |
| contact surface | gold-plated | |
| Rated voltage | 250 V | |
| Rated current | 3 A | |
| Orientation | straight | |
| Pin number | 36 pole | |
| Grid | 2.54 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369095 |
| Original Packaging | Bar with 6 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
