SK 409 25,4 STC T0 220 | Fischer Elektronik
Extruded heatsink, (L x W x H) 25.4 x 45 x 12.7 mm, 8.2 K/W, black anodized, SK 409 25,4 STC T0 220
Unit Price (€ / pc.)
2.3086 € *
Available: 223 pcs.
Total Price:
2.31 € *
Price list
Quantity
Price per unit*
1 pcs.
2.3086 €
10 pcs.
2.1420 €
25 pcs.
1.9992 €
50 pcs.
1.8207 €
*incl. VAT plus shipping costs
Subject to prior sale

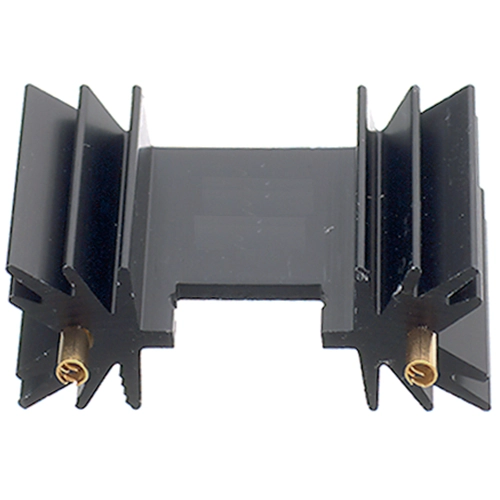

Extruded heatsink for PCB mounting, type Fischer SK 409.
For TO220 and TO3-P, with raised locking point P for semiconductor clip mounting, made of black anodized aluminum. Supplied without mounting clip.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Max. heat resistance | 8.2 K/W | |
| Length | 25.4 mm | |
| Width | 45 mm | |
| Height | 12.7 mm | |
| Material | aluminum | |
| Version | extruded heatsink | |
| Surface type | black anodized | |
| Suitable for | TO-220, TO-3P |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 76042990 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
