Extruded heatsink, (L x W x H) 100 x 96 x 41 mm, 2 to 0.7 K/W, black anodized, SK 172 100 SA
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
14.3276 € *
Available: 1 pcs.
Total Price:
14.33 € *
Price list
Quantity
Price per unit*
1 pcs.
14.3276 €
5 pcs.
13.5779 €
10 pcs.
12.7092 €
25 pcs.
11.5906 €
*incl. VAT plus shipping costs
Subject to prior sale

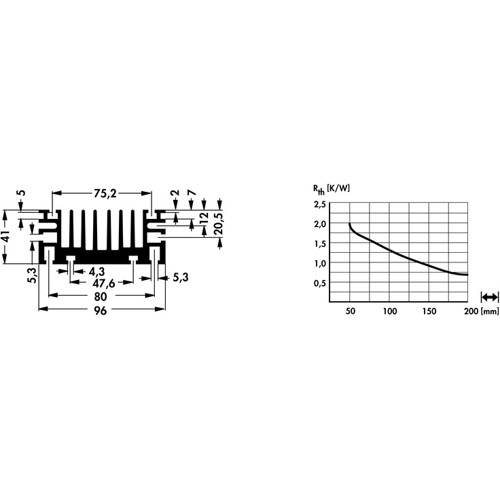

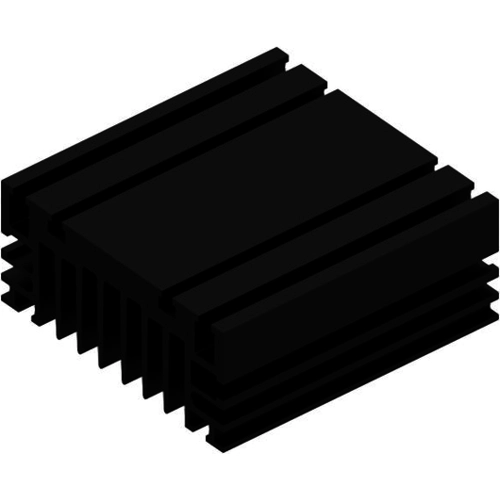

Profile heatsink, type Fischer SK 172.
Made of black anodized aluminum, no perforation, suitable for electronic load relays (for screw mounting) basic dimensions L 57, W 44.5 mm.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Min. heat resistance | 0.7 K/W | |
| Max. heat resistance | 2 K/W | |
| Length | 100 mm | |
| Width | 96 mm | |
| Height | 41 mm | |
| Material | aluminum | |
| Version | extruded heatsink | |
| Surface type | black anodized |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 76042990 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
