ICK BGA 27 X 27 | Fischer Elektronik
IC heatsink, (L x W x H) 27 x 27 x 6 mm, 20 to 6.5 K/W, black anodized, ICK BGA 27 X 27
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
1.4875 € *
Available: 71 pcs.
Total Price:
1.49 € *
Price list
Quantity
Price per unit*
1 pcs.
1.4875 €
10 pcs.
1.3804 €
25 pcs.
1.2852 €
50 pcs.
1.1662 €
*incl. VAT plus shipping costs
Subject to prior sale

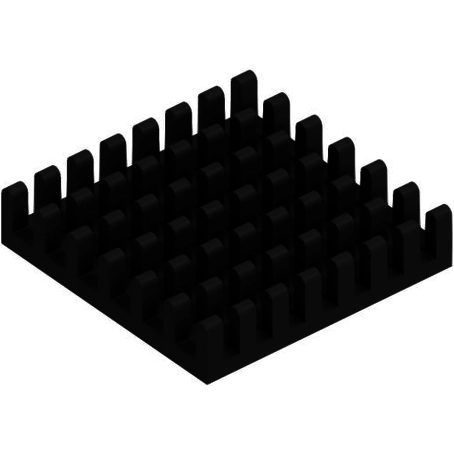

Heatsink for BGAs, type Fischer ICK BGA.
Made of black anodized aluminum, suitable for Ball Grid Arrays, matches the respective type precisely
With 23 x 23 and 27 x 27 matrix, type ICK BGA.

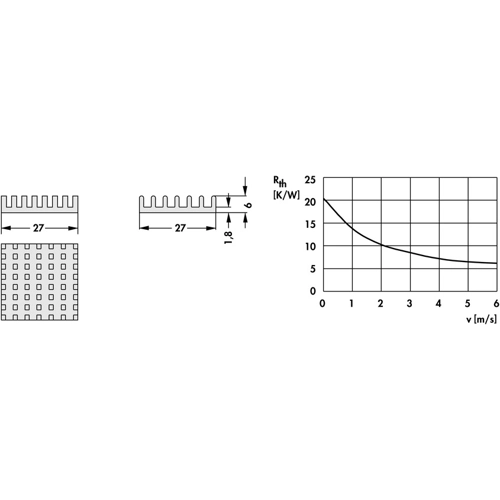

Technical specifications
| Filter | Property | Value |
|---|---|---|
| Min. heat resistance | 6.5 K/W | |
| Max. heat resistance | 20 K/W | |
| Length | 27 mm | |
| Width | 27 mm | |
| Height | 6 mm | |
| Material | aluminum | |
| Version | IC heatsink | |
| Surface type | black anodized | |
| Suitable for | BGA |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 76042990 |
Compliance
| Property | Value |
|---|---|
| Electrical equipment take-back |  |
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
