10169186 | Fischer Elektronik
Extruded heatsink, (L x W x H) 200 x 200 x 70 mm, 0.5 to 0.16 K/W, black anodized, 10169186
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
68.1870 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
68.19 € *
Price list
Quantity
Price per unit*
1 pcs.
68.1870 €
2 pcs.
66.2711 €
5 pcs.
65.3548 €
10 pcs.
63.5817 €
*incl. VAT plus shipping costs
Subject to prior sale

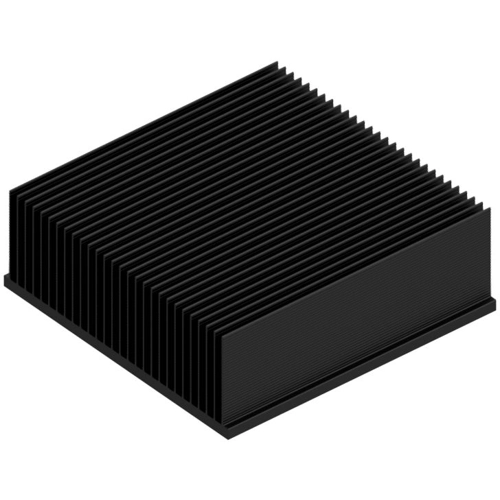

Extruded heatsink, 10169186, Fischer Elektronik
Extruded Heatsink SK 711 in 200 mm x 200 mm x 70 mm. Surface black anodised.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Min. heat resistance | 0.16 K/W | |
| Max. heat resistance | 0.5 K/W | |
| Length | 200 mm | |
| Width | 200 mm | |
| Height | 70 mm | |
| Material | aluminum | |
| Version | extruded heatsink | |
| Surface type | black anodized |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 76169990 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
