10151070 | Fischer Elektronik
Clip-on heatsink, (L x W x H) 26 x 13 x 9 mm, 24.4 K/W, solderable surface, 10151070
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
1.3090 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
1.31 € *
Price list
Quantity
Price per unit*
1 pcs.
1.3090 €
10 pcs.
1.2138 €
25 pcs.
1.1305 €
50 pcs.
1.0234 €
*incl. VAT plus shipping costs
Subject to prior sale

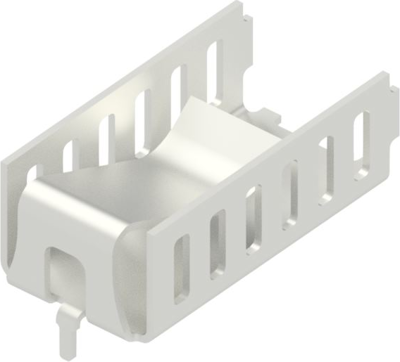

Attachable heatsink, 10151070, Fischer Elektronik
Attachable heatsink for TO-220, TO-248, TO-247, TO-218, SIP-Multiwatt and similar designs. Integrated clamp geometry for secure fixing of the component.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Max. heat resistance | 24.4 K/W | |
| Length | 26 mm | |
| Width | 13 mm | |
| Height | 9 mm | |
| Material | copper | |
| Version | clip-on heatsink | |
| Surface type | solderable surface | |
| Suitable for | TO-220, TO-248, TO-247, TO-218, SIP-Multiwatt |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85429000 |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
