10151051 | Fischer Elektronik

Clip-on heatsink, (L x W x H) 21 x 13 x 13 mm, 21.9 K/W, solderable surface, 10151051

Order No.: 70B334
EAN: 4099889474572
MPN:
10151051
FK 267 MI 220 O
Series: FK

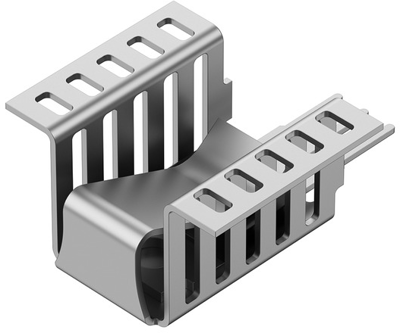

10151051 Fischer Elektronik Heat Sinks Image 1

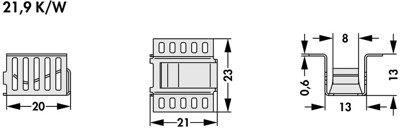

10151051 Fischer Elektronik Heat Sinks Image 2
Image may differ
Unit Price (€ / pc.)
1.4875 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
1.49 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
1.4875 €

Heat sink, FK 267 MI 220 O, Fischer Elektronik

Heatsink pluggable

Features

  • Universal clip-on heatsinks for design TO 220 and similar
  • Integrated clamp geometry for a secure fixing of the device
  • Angled designs with enlarged surface
  • Modifications and special designs according to customer’s specifications

Technical data

  • Version: Clip-on Heat sink
  • Material: Cu
  • Length: 25 mm
  • Suitable for:  TO220|TO248|TO247|TO218|SIP Multiwatt
Technical specifications
Filter Property Value
Width 13 mm
Height 13 mm
Length 21 mm
Max. heat resistance 21.9 K/W
Version clip-on heatsink
Material copper
Surface type solderable surface
Suitable for TO220, TO248, TO247, TO218, SIP Multiwatt
Logistics
Property Value
Country of origin DE
Customs tariff number 74152900
Compliance
Property Value
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
