10093088 | Fischer Elektronik

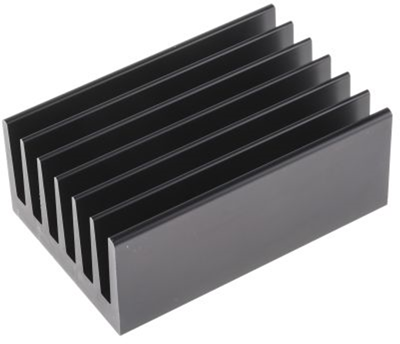

Extruded heatsink, 70 x 66 x 40 mm, 2.9 to 1 K/W, black anodized

Order No.: 70B6910
EAN: 4099889475654
MPN:
10093088
SK 100 70 SA
Series: SK
Fischer Elektronik
default L
Image may differ
Print
Key Specification:
Min. heat resistance 1 K/W
Max. heat resistance 2.9 K/W
Length 70 mm
Width 66 mm
Download Datasheet Technical specifications
Unit Price (€ / pc.)
6.7592 € *
Available: 12 pcs.
Leadtime: 6 Weeks **
Total Price:
6.76 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
6.7592 €
Description
Technical specifications
Download
Logistics
Compliance

Heatsinks for Crouzet solid-state relays, type Fischer SK 100.

Non-perforated, made of black anodized aluminum. Suitable for relay series GN, GND, GA 5 and Dual

SK 100,

Heat dissipation: 2.0 K/W,

Length: 70 mm
Technical specifications
Version profile heatsink
Width 66 mm
Height 40 mm
Length 70 mm
Material die-cast aluminum
Max. heat resistance 2.9 K/W
Min. heat resistance 1 K/W
Surface type black anodized
Show similar products 0
Logistics
Country of origin DE
Customs tariff number 76042990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
