10035049 | Fischer Elektronik
Heatsink, (L x W x H) 8 x 15 x 10 mm, 28.8 K/W, solderable surface, 10035049
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
1.0234 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
1.02 € *
Price list
Quantity
Price per unit*
1 pcs.
1.0234 €
10 pcs.
0.9520 €
25 pcs.
0.8925 €
50 pcs.
0.8092 €
*incl. VAT plus shipping costs
Subject to prior sale

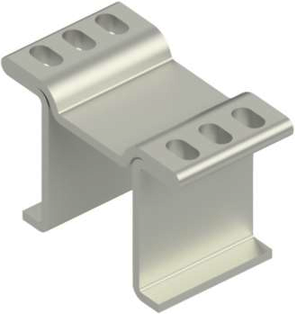

SMD profile heatsink for D PAK and others, type Fischer FK 250.
For direct PCB mounting through solderable surface, particularly suitable for SMD components type D PAK (TO 252), D2 PAK (TO 263), D3 PAK (TO 268), SO-8, SO-14, SO-16, Power SO-10, SOT 223, SOT 669 LF PAK, SO IC-8 FL MP, Power SO-8/SO-20 and SO-36.

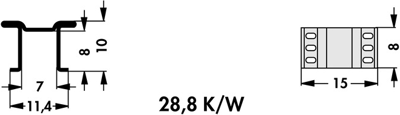

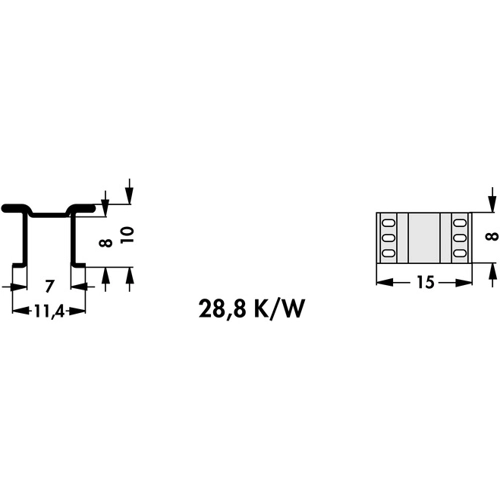

Technical specifications
| Filter | Property | Value |
|---|---|---|
| Max. heat resistance | 28.8 K/W | |
| Length | 8 mm | |
| Width | 15 mm | |
| Height | 10 mm | |
| Material | copper | |
| Version | heatsink | |
| Surface type | solderable surface | |
| Suitable for | SOT-223, Power SO-8, D³PAK, TO-268, Power SO-20, SO-14, D²PAK, TO-263, Power SO-10, D-PAK, TO-252, SOT-669 LF PAK, SO-16, SOIC-8 FL MP, SO-8, Power SO-36 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 74198090 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
