10035042 | Fischer Elektronik

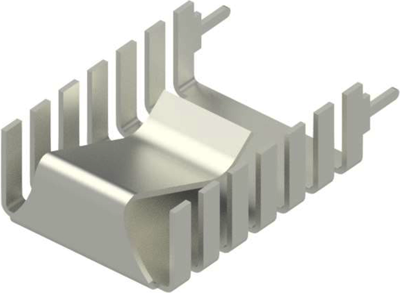

Clip-on heatsink, (L x W x H) 32 x 20 x 9 mm, 19.7 K/W, solderable surface, 10035042
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
1.9040 € *
Available: 80 pcs.
Total Price:
1.90 € *
Price list
Quantity
Price per unit*
1 pcs.
1.9040 €
10 pcs.
1.7612 €
25 pcs.
1.6422 €
50 pcs.
1.4994 €
*incl. VAT plus shipping costs
Subject to prior sale
Snap-on heatsink, type Fischer FK.
For TO-220, TO-248, TO-247, TO-218, SIP-Multiwatt, made of copper with solderable finish.
With solder lug for vertical installation, type FK.

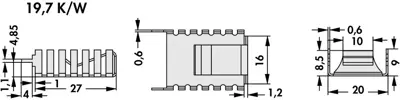

Technical specifications
| Filter | Property | Value |
|---|---|---|
| Max. heat resistance | 19.7 K/W | |
| Length | 32 mm | |
| Width | 20 mm | |
| Height | 9 mm | |
| Material | copper | |
| Version | clip-on heatsink | |
| Surface type | solderable surface | |
| Suitable for | TO-220, TO-248, TO-247, TO-218, SIP-Multiwatt |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 76169990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
