10035038 | Fischer Elektronik
Heatsink, (L x W x H) 13 x 23 x 10 mm, 25 K/W, solderable surface, 10035038
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
1.2138 € *
Available: 30 pcs.
Total Price:
1.21 € *
Price list
Quantity
Price per unit*
1 pcs.
1.2138 €
10 pcs.
1.1305 €
25 pcs.
1.0472 €
50 pcs.
0.9520 €
*incl. VAT plus shipping costs
Subject to prior sale

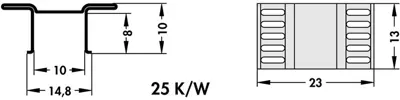

SMD profile heatsink for D PAK and others, type Fischer FK 244 13.
For SOT-223, D³PAK, TO-268, SO-14, D²PAK, TO-263, Power SO-10, D-PAK, TO-252, SO-16, SO-8, made of copper, with solderable surface.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Max. heat resistance | 25 K/W | |
| Length | 13 mm | |
| Width | 23 mm | |
| Height | 10 mm | |
| Material | copper | |
| Version | heatsink | |
| Surface type | solderable surface | |
| Suitable for | SOT-223, D³PAK, TO-268, SO-14, D²PAK, TO-263, Power SO-10, D-PAK, TO-252, SO-16, SO-8 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 76169990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
