10021548 | Fischer Elektronik

Extruded heatsink, 1000 x 6 x 50 mm, 10 to 3.6 K/W, natural aluminum

Order No.: 65B914
EAN: 4099889473674
MPN:
10021548
SK 575 1000 AL
Fischer Elektronik
default L
Image may differ
Print
Key Specification:
Min. heat resistance 3.6 K/W
Max. heat resistance 10 K/W
Length 1000 mm
Width 6 mm
Download Datasheet Technical specifications
Unit Price (€ / pc.)
36.4735 € *
Available: 0 pcs.
Leadtime: 5 Weeks **
Add to Cart
Total Price:
36.47 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
36.4735 €
Description
Technical specifications
Download
Logistics
Compliance

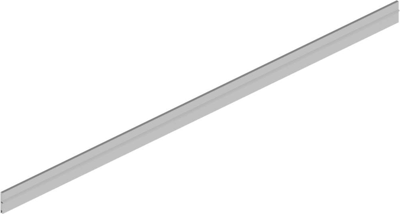

Extruded heatsink, 10021548, Fischer Elektronik

Extruded heatsink for lock-in retaining spring for THFU 1-4+6, Profile threads, Surface: raw degreased aluminium (by the metre raw aluminium), Length: 1000 mm.

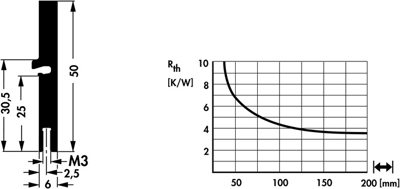

Technical specifications
Version extruded heatsink
Width 6 mm
Height 50 mm
Length 1000 mm
Material aluminum
Max. heat resistance 10 K/W
Min. heat resistance 3.6 K/W
Surface type natural aluminum
Show similar products 0
Logistics
Country of origin DE
Customs tariff number 76042990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
