10021164 | Fischer Elektronik
Extruded heatsink, (L x W x H) 100 x 180 x 48 mm, 1.25 to 0.6 K/W, black anodized, 10021164
Unit Price (€ / pc.)
19.4684 € *
Available: 125 pcs.
Total Price:
19.47 € *
Price list
Quantity
Price per unit*
1 pcs.
19.4684 €
10 pcs.
17.9095 €
50 pcs.
16.3030 €
100 pcs.
14.3395 €
*incl. VAT plus shipping costs
Subject to prior sale

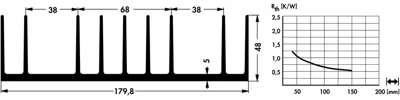

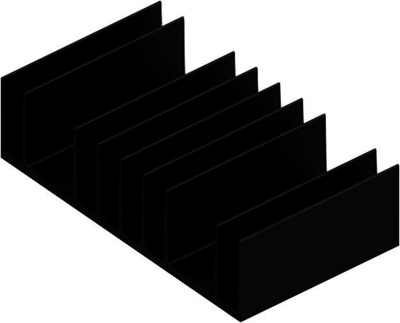

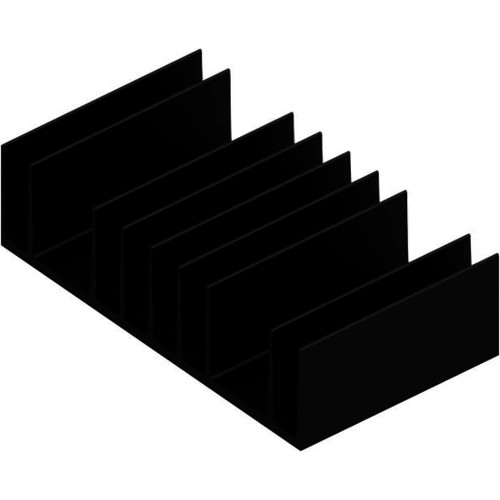

Profile heatsink, type Fischer SK 53.
Made of black anodized aluminum, no perforation. Meter section for orders as of 10 items on request.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Surface type | black anodized | |
| Height | 48 mm | |
| Min. heat resistance | 0.6 K/W | |
| Version | extruded heatsink | |
| Material | aluminum | |
| Width | 180 mm | |
| Length | 100 mm | |
| Max. heat resistance | 1.25 K/W |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 76042990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
