10020876 | Fischer Elektronik

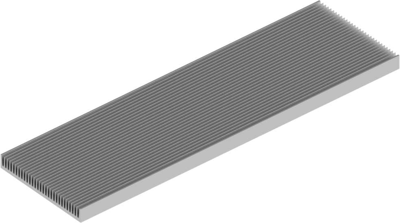

Extruded heatsink, 1000 x 300 x 40 mm, 0.5 to 0.3 K/W, natural aluminum

Order No.: 65B891
EAN: 4099889473476
MPN:
10020876
SK 501 1000 AL
Fischer Elektronik
default L
Image may differ
Print
Key Specification:
Min. heat resistance 0.3 K/W
Max. heat resistance 0.5 K/W
Length 1000 mm
Width 300 mm
Download Datasheet Technical specifications
Unit Price (€ / pc.)
312.5059 € *
Available: 0 pcs.
Leadtime: 5 Weeks **
Add to Cart
Total Price:
312.51 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
312.5059 €
Description
Technical specifications
Download
Logistics
Compliance

Standard extruded heatsink, 10020876, Fischer Elektronik

Standard extruded heatsink, Weigth reduced like SK 56, Surface: raw degreased aluminium (by the metre raw aluminium).

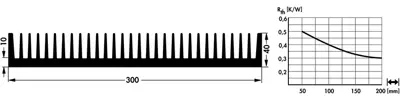

Technical specifications
Version profile heatsink
Width 300 mm
Height 40 mm
Length 1000 mm
Material aluminum
Max. heat resistance 0.5 K/W
Min. heat resistance 0.3 K/W
Surface type natural aluminum
Show similar products 0
Logistics
Country of origin DE
Customs tariff number 76042990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
