10020743 | Fischer Elektronik

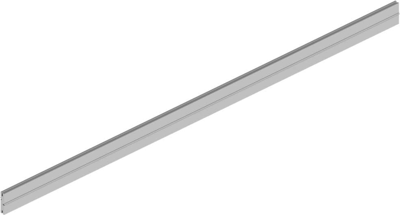

Extruded heatsink, 1000 x 11 x 50 mm, 9.5 to 2.8 K/W, natural aluminum

Order No.: 65B887
EAN: 4099889473438
MPN:
10020743
SK 490 1000 AL
Fischer Elektronik
default L
Image may differ
Print
Key Specification:
Min. heat resistance 2.8 K/W
Max. heat resistance 9.5 K/W
Length 1000 mm
Width 11 mm
Download Datasheet Technical specifications
Unit Price (€ / pc.)
45.101 € *
Available: 0 pcs.
Leadtime: 5 Weeks **
Add to Cart
Total Price:
45.10 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
45.101 €
Description
Technical specifications
Download
Logistics
Compliance

Extruded heatsink, 10020743, Fischer Elektronik

Extruded heatsink for lock-in retaining spring, also for THFU 1-7, Profile threads, Surface: raw degreased aluminium (by the metre raw aluminium).

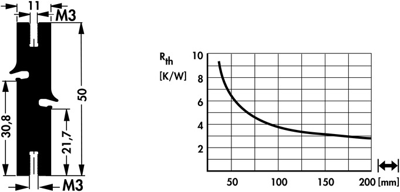

Technical specifications
Version extruded heatsink
Width 11 mm
Height 50 mm
Length 1000 mm
Material aluminum
Max. heat resistance 9.5 K/W
Min. heat resistance 2.8 K/W
Surface type natural aluminum
Show similar products 0
Logistics
Country of origin DE
Customs tariff number 76042990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
