10020721 | Fischer Elektronik

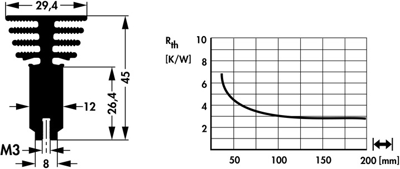

Extruded heatsink, (L x W x H) 75 x 29.4 x 45 mm, 6.9 to 2.9 K/W, black anodized, 10020721
Unit Price (€ / pc.)
5.0099 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
5.01 € *
Price list
Quantity
Price per unit*
1 pcs.
5.0099 €
10 pcs.
4.6529 €
25 pcs.
4.3435 €
50 pcs.
3.9508 €
*incl. VAT plus shipping costs
Subject to prior sale
Extruded heatsink, 10020721, Fischer Elektronik

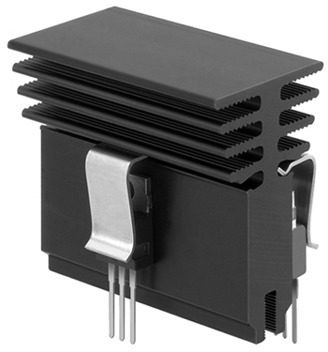

Extruded heatsink for lock-in retaining spring, Black anodised, Length: 75 mm.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Min. heat resistance | 2.9 K/W | |
| Max. heat resistance | 6.9 K/W | |
| Length | 75 mm | |
| Width | 29.4 mm | |
| Height | 45 mm | |
| Material | aluminum | |
| Version | extruded heatsink | |
| Surface type | black anodized | |
| Suitable for | snap-in transistor retaining spring |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 76042990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
