10020016 | Fischer Elektronik

Extruded heatsink, 37.5 x 50.8 x 16.51 mm, 5.7 to 2.8 K/W, black anodized, 10020016

Order No.: 72B400
EAN: 4099889476231
MPN:
10020016
SK 426 37,5 SA
Series: SK
Fischer Elektronik
10020016 Fischer Elektronik Heat Sinks
Image may differ
Print
Key Specification:
Min. heat resistance 2.8 K/W
Max. heat resistance 5.7 K/W
Length 37.5 mm
Width 50.8 mm
Show 4 variants
Download Datasheet Technical specifications
Unit Price (€ / pc.)
2.0706 € *
Available: 28 pcs.
Leadtime: On Request **
Total Price:
2.07 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
2.0706 €
Description
Technical specifications
Download
Logistics
Compliance
Variations

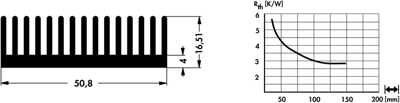

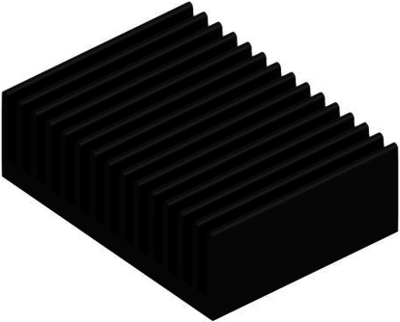

Profile heatsink, type Fischer SK 426.

Made of black anodized aluminum, no perforation.
Technical specifications
Version profile heatsink
Width 50.8 mm
Height 16.51 mm
Length 37.5 mm
Material die-cast aluminum
Max. heat resistance 5.7 K/W
Min. heat resistance 2.8 K/W
Surface type black anodized
Show similar products 0
Logistics
Country of origin DE
Customs tariff number 76042990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
