10019873 | Fischer Elektronik

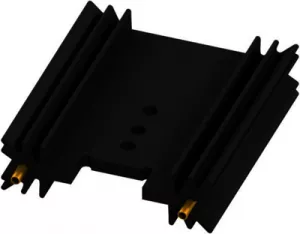

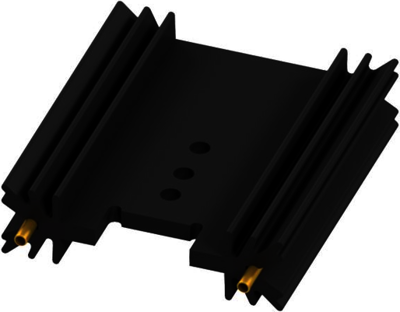

Extruded heatsink, 50.8 x 45 x 12.7 mm, 6.2 K/W, black anodized

Order No.: 65B846
EAN: 4099889473063
MPN:
10019873
SK 409 50,8 STS
Fischer Elektronik
default L
Image may differ
Print
Key Specification:
Max. heat resistance 6.2 K/W
Length 50.8 mm
Width 45 mm
Download Datasheet Technical specifications
Unit Price (€ / pc.)
3.332 € *
Available: 0 pcs.
Leadtime: 9 Weeks **
Add to Cart
Total Price:
3.33 € *
*incl. VAT plus shipping costs
**Subject to prior sale
10 pcs.
3.332 €
Description
Technical specifications
Download
Logistics
Compliance

Extruded heatsink, 10019873, Fischer Elektronik

Extruded heatsink for PCB mounting, also for semiconductor screw-mounting, Mounting method: with solder pin.

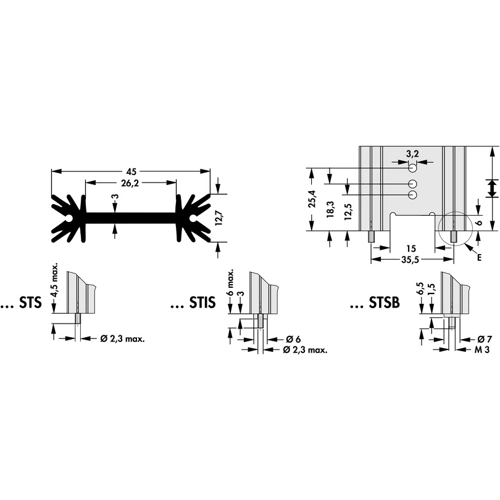

Technical specifications
Version extruded heatsink
Width 45 mm
Height 12.7 mm
Length 50.8 mm
Material aluminum
Max. heat resistance 6.2 K/W
Surface type black anodized
Show similar products 0
Logistics
Country of origin DE
Customs tariff number 76042990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
