10019785 | Fischer Elektronik

Extruded heatsink, 1000 x 121.3 x 31.4 mm, 2.75 to 1.25 K/W, black anodized

Order No.: 72B628
EAN: 4099889476385
MPN:
10019785
SK 39 1000 SA
Series: SK
Fischer Elektronik
default L
Image may differ
Print
Key Specification:
Min. heat resistance 1.25 K/W
Max. heat resistance 2.75 K/W
Length 1000 mm
Width 121.3 mm
Download Datasheet Technical specifications
Unit Price (€ / pc.)
90.2139 € *
Available: 0 pcs.
Leadtime: 8 Weeks **
Add to Cart
Total Price:
90.21 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
90.2139 €
Description
Technical specifications
Download
Logistics
Compliance

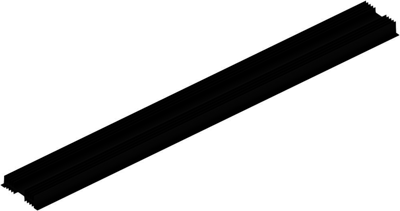

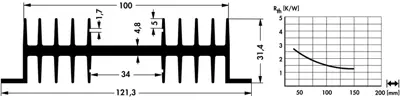

Profile heatsinks, type Fischer SK 39.

Made of black anodized aluminum, no perforation.
Technical specifications
Version profile heatsink
Width 121.3 mm
Height 31.4 mm
Length 1000 mm
Material die-cast aluminum
Max. heat resistance 2.75 K/W
Min. heat resistance 1.25 K/W
Surface type black anodized
Show similar products 0
Logistics
Country of origin DE
Customs tariff number 76042990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
