10019603 | Fischer Elektronik

Extruded heatsink, 1000 x 482.8 x 33.5 mm, 0.5 to 0.27 K/W, natural aluminum

Order No.: 65B834
EAN: 4099889472950
MPN:
10019603
SK 191 1000 AL
Fischer Elektronik
default L
Image may differ
Print
Key Specification:
Min. heat resistance 0.27 K/W
Max. heat resistance 0.5 K/W
Length 1000 mm
Width 482.8 mm
Download Datasheet Technical specifications
Unit Price (€ / pc.)
533.3699 € *
Available: 0 pcs.
Leadtime: 5 Weeks **
Add to Cart
Total Price:
533.37 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
533.3699 €
Description
Technical specifications
Download
Logistics
Compliance

Standard extruded heatsink, 10019603, Fischer Elektronik

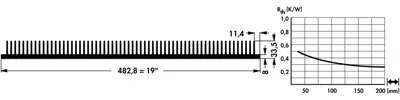

Standard extruded heatsink. Suitable as rear panel cooler for 19" housings, Surface: raw degreased aluminium (by the metre raw aluminium).
Technical specifications
Version profile heatsink
Width 482.8 mm
Height 33.5 mm
Length 1000 mm
Material aluminum
Max. heat resistance 0.5 K/W
Min. heat resistance 0.27 K/W
Surface type natural aluminum
Show similar products 0
Logistics
Country of origin DE
Customs tariff number 76042990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
