10019399 | Fischer Elektronik

Extruded heatsink, 150 x 80 x 160 mm, 1.1 to 0.45 K/W, black anodized

Order No.: 65B824
EAN: 4099889472851
MPN:
10019399
SK 163 150 SA
Fischer Elektronik
default L
Image may differ
Print
Key Specification:
Min. heat resistance 0.45 K/W
Max. heat resistance 1.1 K/W
Length 150 mm
Width 80 mm
Download Datasheet Technical specifications
Unit Price (€ / pc.)
83.2286 € *
Available: 0 pcs.
Leadtime: 6 Weeks **
Add to Cart
Total Price:
83.23 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
83.2286 €
Description
Technical specifications
Download
Logistics
Compliance

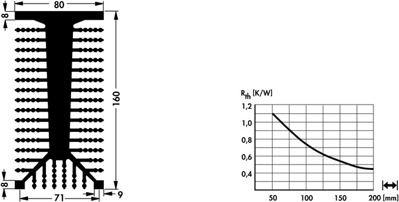

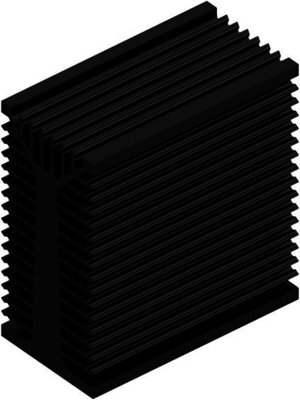

Standard extruded heatsink, SK 163 150 SA, Fischer Elektronik

Standard extruded heatsink with thermal resistance: 1.1-0.45 K/W, Surface: black anodised.
Technical specifications
Version profile heatsink
Width 80 mm
Height 160 mm
Length 150 mm
Material aluminum
Max. heat resistance 1.1 K/W
Min. heat resistance 0.45 K/W
Surface type black anodized
Show similar products 0
Logistics
Country of origin DE
Customs tariff number 76042990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
