10019174 | Fischer Elektronik
Extruded heatsink, (L x W x H) 37.5 x 34.5 x 12.7 mm, 9.5 to 2.94 K/W, black anodized, 10019174
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
4.8552 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
4.86 € *
Price list
Quantity
Price per unit*
1 pcs.
4.8552 €
10 pcs.
4.5577 €
50 pcs.
4.2840 €
100 pcs.
4.1055 €
*incl. VAT plus shipping costs
Subject to prior sale

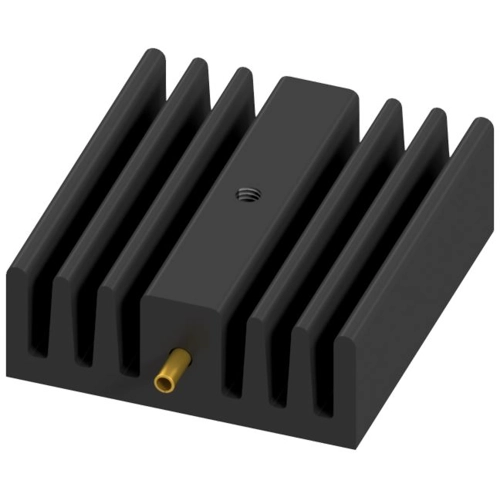

Extruded heatsink, 10019174, Fischer Elektronik
Extruded Heatsink for PCB mounting SK 126 for TO-218, TO-220, TO-247, TO-248 in 37.5 mm x 34.5 mm x 12.7 mm. Surface black anodised.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Min. heat resistance | 2.94 K/W | |
| Max. heat resistance | 9.5 K/W | |
| Length | 37.5 mm | |
| Width | 34.5 mm | |
| Height | 12.7 mm | |
| Material | aluminum | |
| Version | extruded heatsink | |
| Surface type | black anodized | |
| Suitable for | TO-218, TO-220, TO-247, TO-248 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85429000 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
